(27.106.080) - REAR AXLE, DIFFERENTIAL

Запчасти Case 580SN WT (27.106.080) - REAR AXLE, DIFFERENTIAL (27) - REAR AXLE SYSTEM

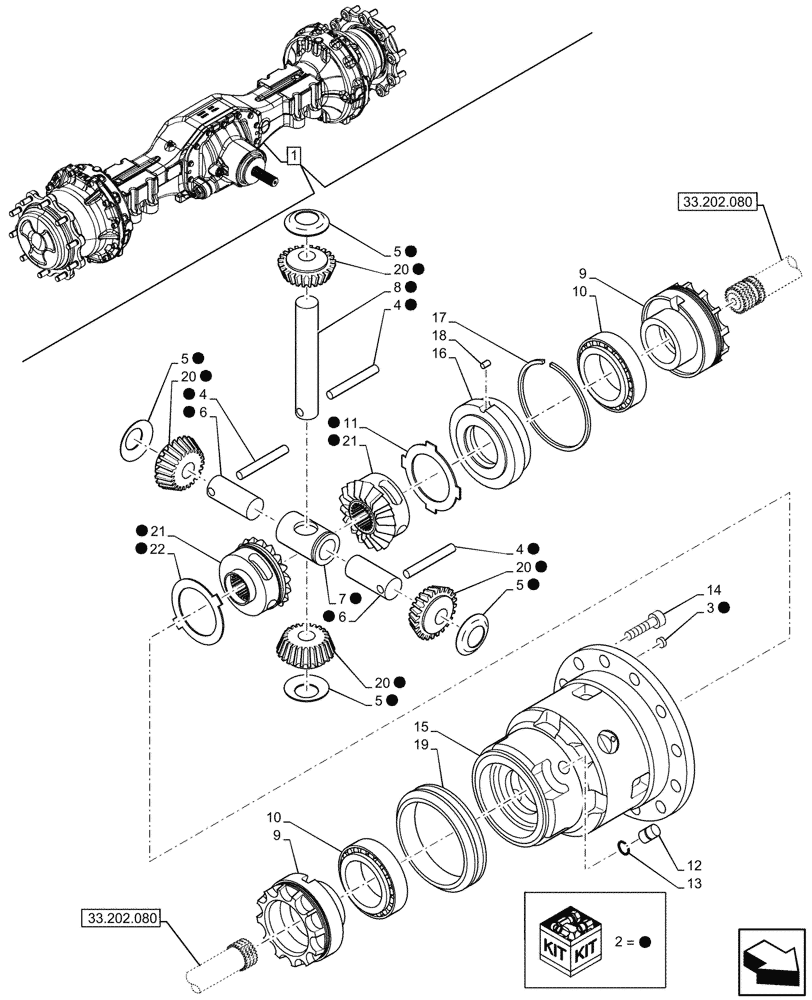

Схема запчастей Case 580SN WT - (27.106.080) - REAR AXLE, DIFFERENTIAL (27) - REAR AXLE SYSTEM
33.202.080
21
5
5
1
21
1
9
1
11
1
7
4
10
1
2
1
9
1
20
18
1
8
14
6
1
19
3
1
1
4
1
16
20
13
1
1
4
6
20
1
20
5
5
1
22
1
17
1
12
1
1
10
15
1
33.202.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47484457

REAR AXLE

28.50 Drive 16 to 1 CW, ASSY, Incl 2 - 22

1шт.

See also Rear Axle Components in Figures 27.100.060, 27.106.070, 27.106.090, 27.120.040, 33.202.080

1шт.

2

84202071

DIFFERENTIAL

ASSY, Incl 3 - 8, 11, 20 - 22

1шт.

3

D142898

PLUG,M10 x 1

M10 x 1

3шт.

4

87708521

PIN,7mm OD x 124mm L

3шт.

5

87708522

THRUST WASHER

4шт.

6

87708523

PIN

Short

2шт.

7

84202468

SPIDER

1шт.

8

87708525

PIN

Long

1шт.

9

84202507

RING NUT,M104 x 1.5

2шт.

10

E135785

BEARING

2шт.

11

87708526

DRIVE PLATE

1шт.

12

292207A1

PIN

Differential

4шт.

13

292208A1

O-RING

4шт.

14

87708527

BOLT,M14 x 30

12шт.

15

87708528

HOUSING

1шт.

16

87708532

COVER

1шт.

17

87708533

CIRCLIP

1шт.

18

87708411

PIN,8mm OD x 12mm L

1шт.

19

87708401

SLEEVE

Rear Axle

1шт.

20

NSS

NOT SOLD SEPARAT

Ring Gear, Incl in 2

4шт.

21

NSS

NOT SOLD SEPARAT

Ring Gear, Incl in 2

2шт.

22

87708395

DRIVE PLATE

Rear Axle Differential

1шт.
