(27.100.060) - REAR AXLE, HOUSING

Запчасти Case 580SN WT (27.100.060) - REAR AXLE, HOUSING (27) - REAR AXLE SYSTEM

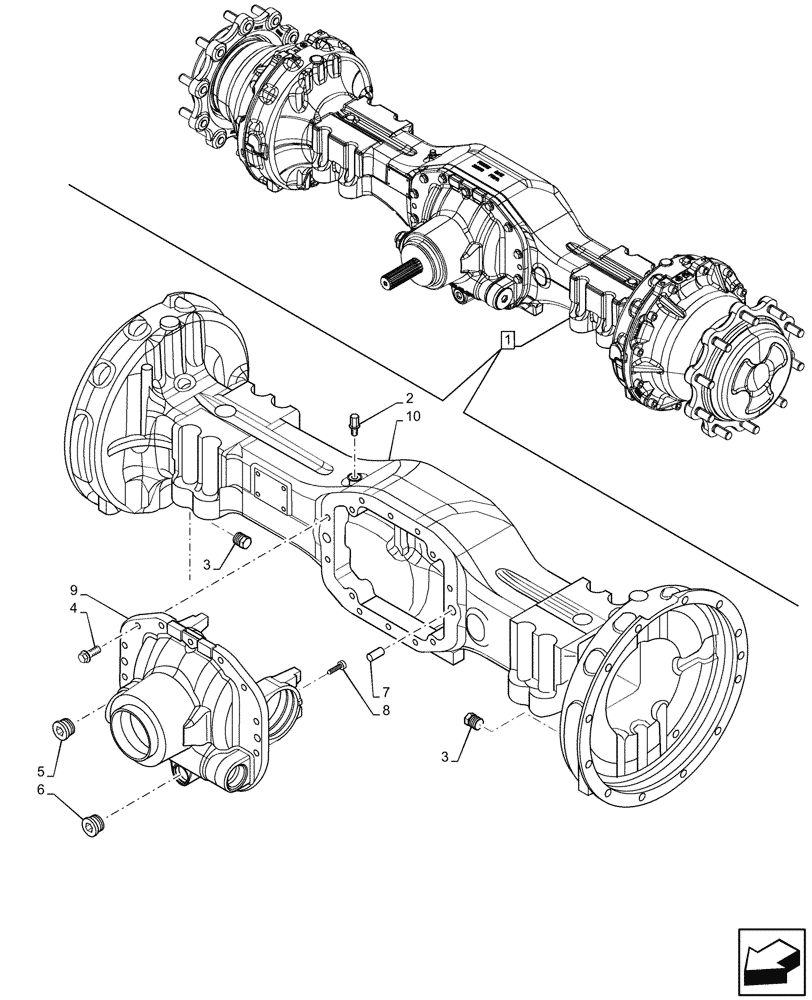

Схема запчастей Case 580SN WT - (27.100.060) - REAR AXLE, HOUSING (27) - REAR AXLE SYSTEM
1
9
2
3
5
7
6
4
3
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47484457

REAR AXLE

28.50 Drive 16 to 1 CW, ASSY, Incl 2 - 10

1шт.

See also Rear Axle Components in Figures 27.106.070, 27.106.080, 27.106.090, 27.120.040, 33.202.080

1шт.

2

1966149C2

BREATHER

1шт.

3

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

4

S301064

BOLT,M12

14шт.

5

434746A1

PLUG,M24 x 1.5

1шт.

6

100557A1

PLUG, DRAIN,M30 x 2

1шт.

7

1966138C1

DOWEL

Centering

2шт.

8

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

9

87708489

SUPPORT

Rear Axle Differential

1шт.

10

87708487

AXLE HOUSING

28.50 Drive

1шт.
