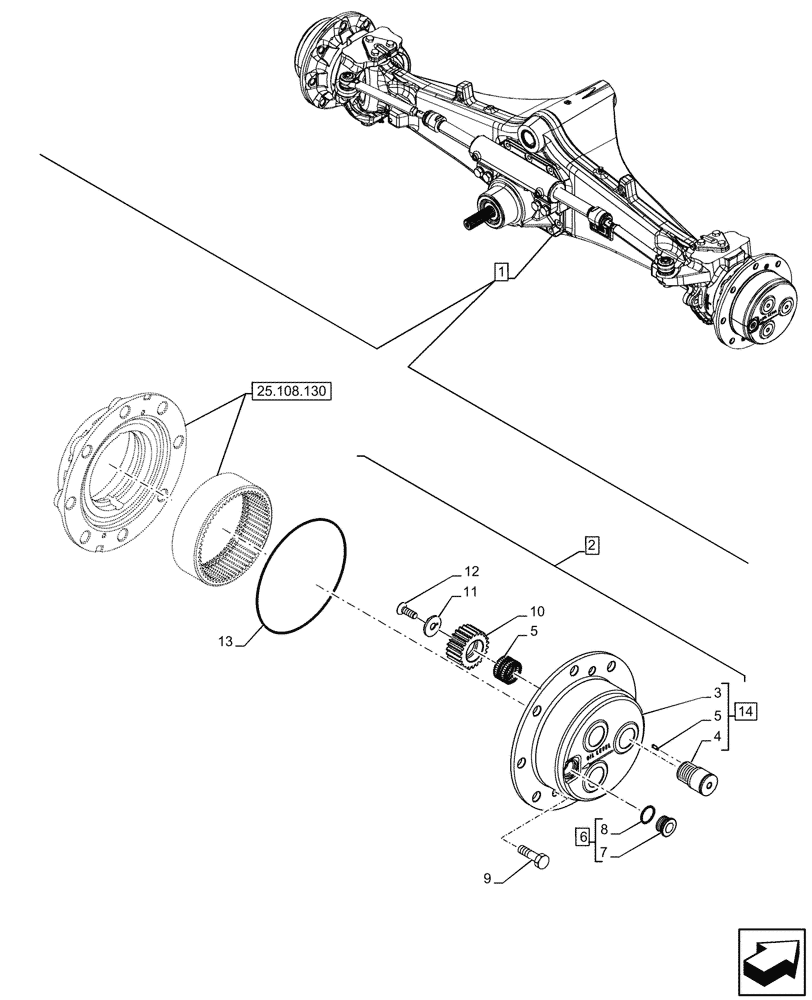

Запчасти Case 580SN WT (25.310.040) - FRONT AXLE, COMPONENTS, PLANETARY REDUCER, CARRIER, 4WD (25) - FRONT AXLE SYSTEM

1

47559841

FRONT AXLE

ASSY, Grey, PS1428 ACP, LS, 13.7-1, Incl 2 - 14

1шт.

See also Front Axle Components in Figures 25.100.110, 25.100.120, 25.102.070, 25.102.080, 25.108.120, 25.108.130, 25.108.140, 41.106.070, 41.216.070

1шт.

2

401754110005

KIT

ASSY, Planetary Carrier, Incl 3 - 8, 10 - 14

1шт.

3

NSS

NOT SOLD SEPARAT

Planetary Carrier, Incl in 14

1шт.

4

84299881

PIN,39.4mmOD x 73mm L

Planetary Drive

3шт.

5

84380206

NEEDLE ROLLER,4mm OD x 12mm L

207шт.

6

84272055

PLUG,M30 x 2

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

ASSY, Plug, Incl in 6

1шт.

8

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

9

47361879

SCREW,M8 x 20 Full 8.8 PHC

4шт.

10

84183899

PLANETARY GEAR,23T

3шт.

11

84271320

RETAINER,13mm ID, 43.8mm OD

Planet Gear

3шт.

12

47519334

SCREW,Hex Soc, Lock, M12 x 1.75 x 36mm

3шт.

13

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

14

84249603

CARRIER

ASSY, Incl 3, 4, 5 (Qty 3)

1шт.
