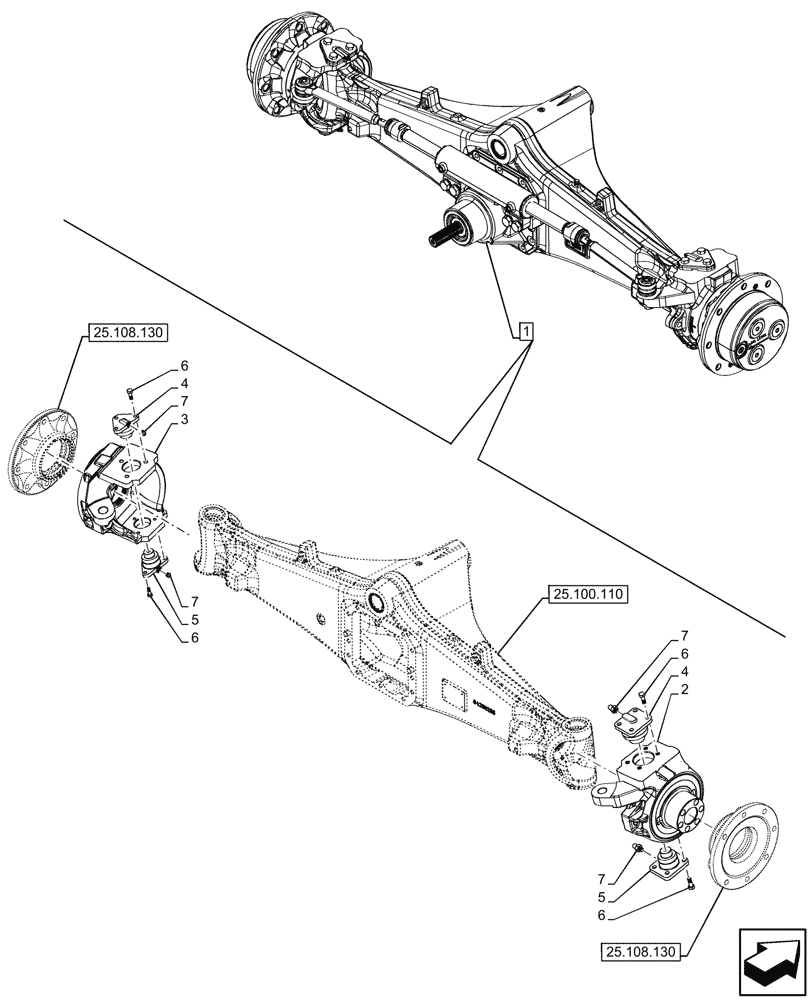

Запчасти Case 580SN WT (25.108.120) - FRONT AXLE, COMPONENTS, STEERING KNUCKLE, PIN, 4WD (25) - FRONT AXLE SYSTEM

1

47559841

FRONT AXLE

ASSY, Grey, PS1428 ACP, LS, 13.7-1, Incl 2 - 7

1шт.

See also Front Axle Components in Figures 25.100.110, 25.100.120, 25.102.070, 25.102.080, 25.108.130, 25.108.140, 25.310.040, 41.106.070, 41.216.070

1шт.

2

47724322

STEERING KNUCKLE

RH

1шт.

3

47724321

STEERING KNUCKLE

LH

1шт.

4

84259754

PIN,49.9mm OD x 48mm L

King Steering Knuckle Top

2шт.

5

84259753

PIN,49.9mm OD x 45mm L

King Steering Knuckle Bottom

2шт.

6

84273749

BOLT,M14 x 2 x 35mm

12шт.

7

84351730

FITTING,M10 x 1

4шт.
