(25.102.070) - FRONT AXLE, COMPONENTS, DIFFERENTIAL GEAR, 4WD

Запчасти Case 580SN WT (25.102.070) - FRONT AXLE, COMPONENTS, DIFFERENTIAL GEAR, 4WD (25) - FRONT AXLE SYSTEM

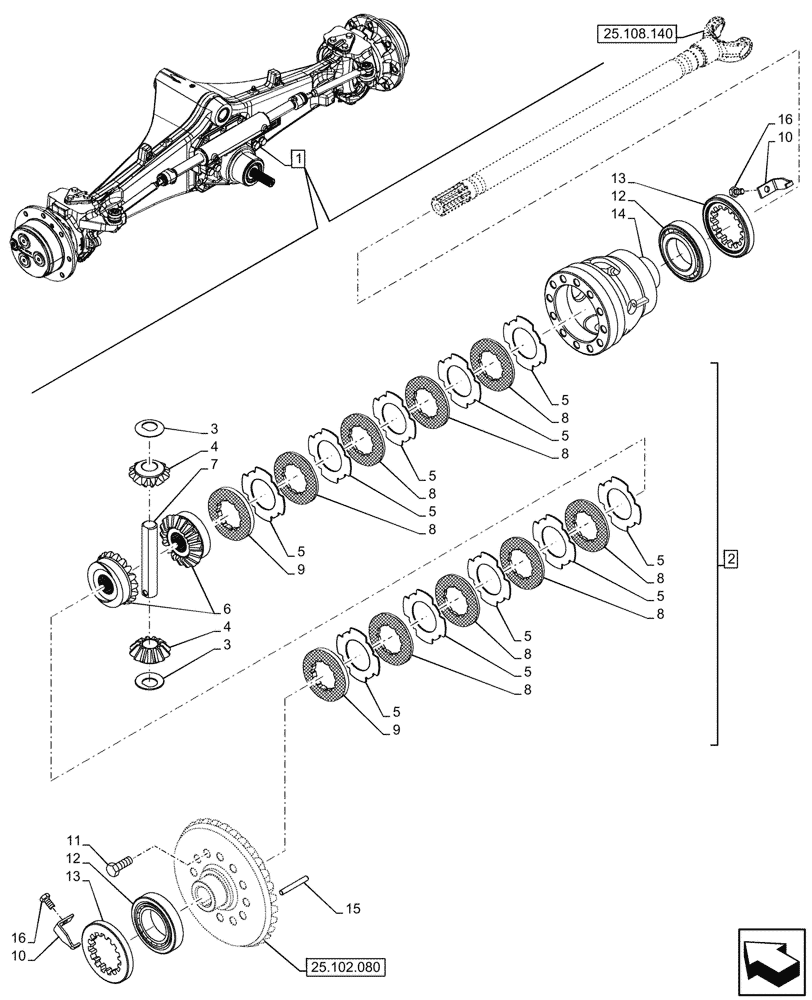

Схема запчастей Case 580SN WT - (25.102.070) - FRONT AXLE, COMPONENTS, DIFFERENTIAL GEAR, 4WD (25) - FRONT AXLE SYSTEM
25.102.080
5
9
8
11
5
13
12
8
6
16
14
5
3
10
4
16
5
13
8
5
5
5
8
8
8
5
4
7
8
5
9
15
5
1
3
10
2
8
12
25.108.140
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47559841

FRONT AXLE

ASSY, Grey, PS1428 ACP, LS, 13.7-1, Incl 2 - 16

1шт.

See also Front Axle Components in Figures 25.100.110, 25.100.120, 25.102.080, 25.108.120, 25.108.130, 25.108.140, 25.310.040, 41.106.070, 41.216.070

1шт.

2

84278738

DIFFERENTIAL ASSY

Incl 3 - 9

1шт.

3

87727553

THRUST WASHER,20.27mm ID x 41.75mm OD x 1.5mm Thk

Pinion

2шт.

4

87727552

BEVEL PINION,12T

21T

2шт.

5

84225954

DISC,69.7mm OD x 1.5mm Thk

Clutch Separator

10шт.

6

87709223

BEVEL GEAR,18T

2шт.

7

84268545

PIN,21.9mm OD x 122.9mm L

Differential Cross

1шт.

8

87709224

CLUTCH DISC,44.08mm ID x 1.60mm Thk

Friction

8шт.

9

87709225

CLUTCH DISC,44.08mm ID x 2.80mm Thk

Friction

2шт.

10

87748532

RETAINER

Bearing Lock

2шт.

11

84273744

LOCK BOLT,Hex, Lock, M12 x 1.75 x 30mm, Cl. 10.9

12шт.

12

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

2шт.

13

4966240

BEARING LOCK NUT,M95 x 2, 15T

2шт.

14

84275476

HOUSING

Differential

1шт.

15

84268547

PIN,6.99mm OD x 61.5mm L

Dowel

1шт.

16

84273742

BOLT,Hex, Lock, M8 x 1.25 x 16mm, Cl. 10.9

2шт.
