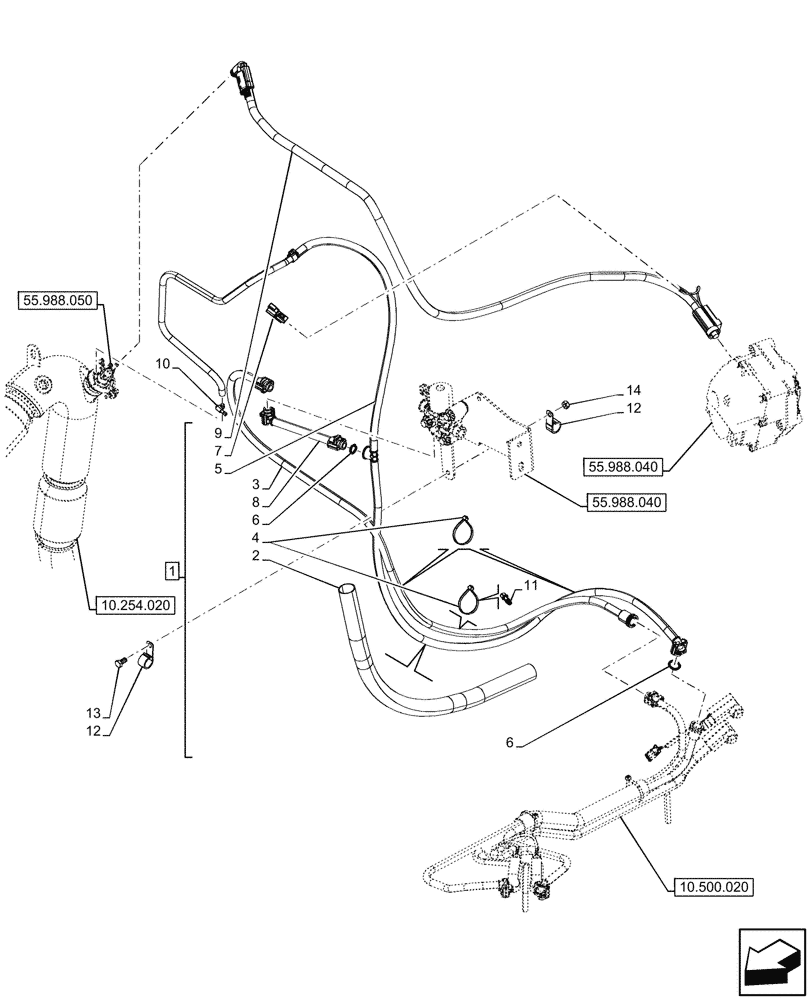

Запчасти Case 580SN WT (10.500.040) - DEF LINES (10) - ENGINE

1

47955271

TUBE

ASSY, DEF System Line, Incl 2, 3, 4 (Qty 3), 5 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Coflex, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Coolant Line, Valve to Chassis, Incl in 1

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

12шт.

5

NSS

NOT SOLD SEPARAT

Coolant Line, Chassis to Dock, Incl in 1

1шт.

6

84206573

O-RING,2.5mm Thk x 12mm ID, -70

2шт.

7

87695567

ELEC CONNECTOR,Fem, 2 Cavities/Pins

1шт.

8

NSS

NOT SOLD SEPARAT

Coolant Line, Valve to T-Fitting, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Urea Pressure Tube, Incl in 1

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

11

47655460

FASTENER

1шт.

12

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

2шт.

13

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.
