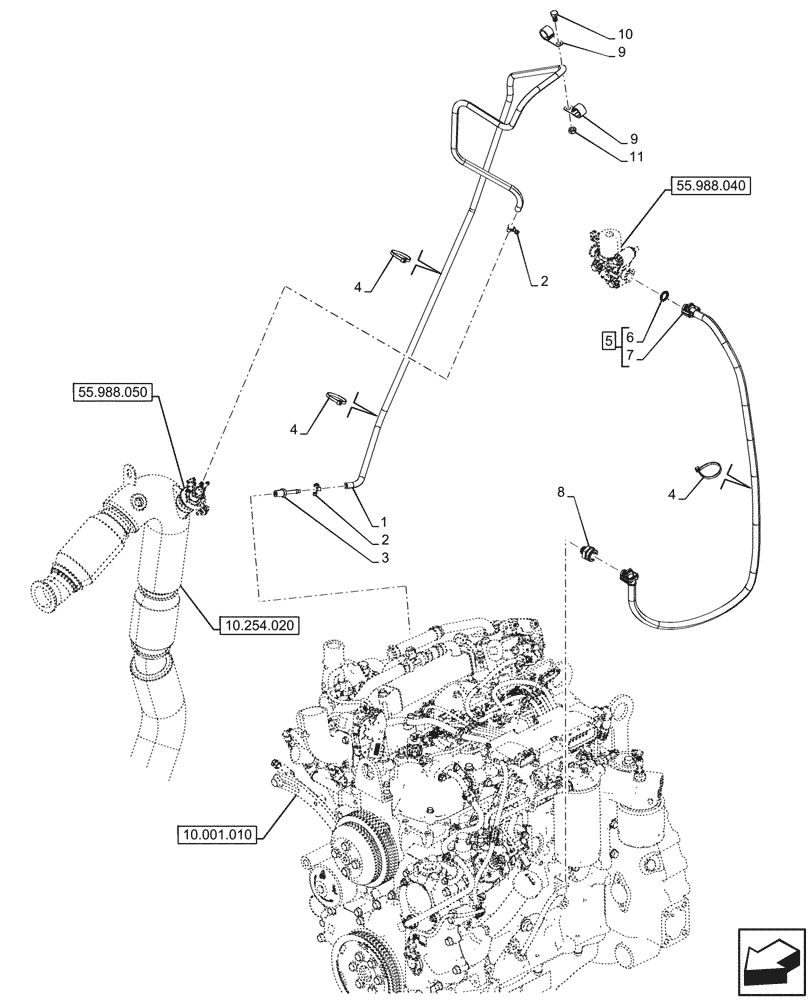

Запчасти Case 580SN WT (10.500.030) - DEF LINES (10) - ENGINE

1

47955269

HOSE,6.3mm ID, 2050mm L, SAE30R7

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

3

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

Coolant Return, DM to Engine

3шт.

5

47594758

TUBE

ASSY, Coolant, Engine to Valve, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Tube, Incl in 5

1шт.

7

84206573

O-RING,2.5mm Thk x 12mm ID, -70

1шт.

8

47607726

ADAPTER

1шт.

9

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

2шт.

10

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.
