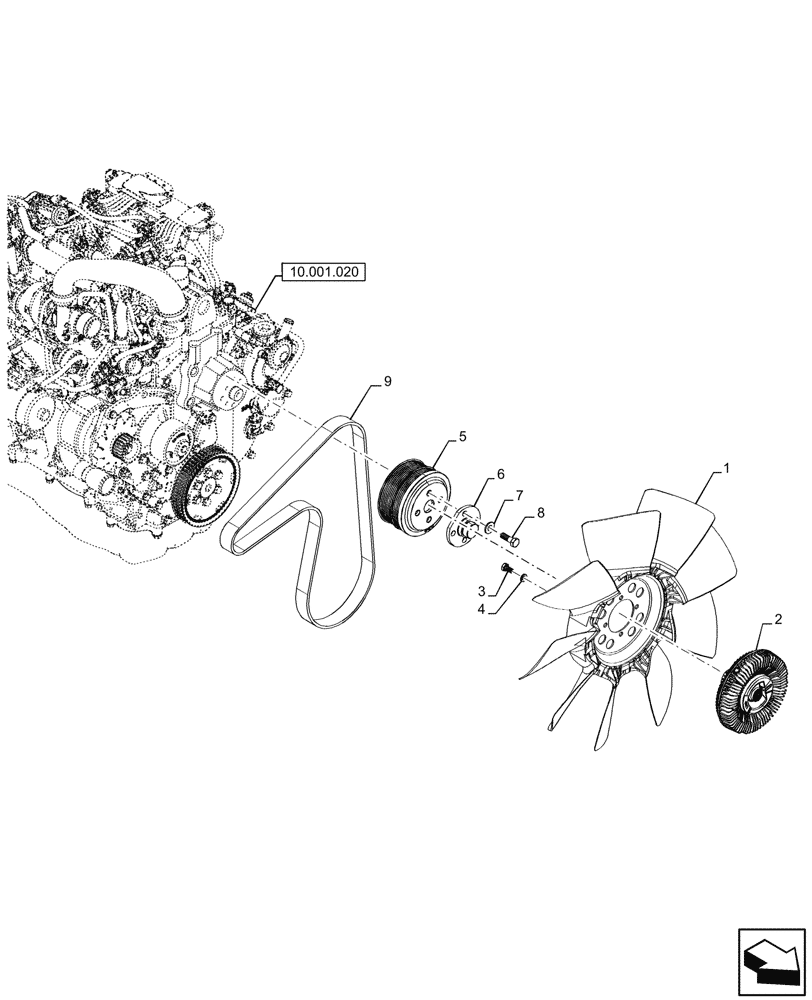

Запчасти Case 580SN WT (10.414.020) - ENGINE, FAN VISCOUS (10) - ENGINE

1

277800A1

FAN,9 Blades, 500.1mm OD

1шт.

2

87340008

DRIVE

Viscous Fan

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

4

892-11008

LOCK WASHER,8mm ID

4шт.

5

84390630

PULLEY

Fan

1шт.

6

303192A1

ADAPTER

Fan

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

9

47610667

V-BELT,28.88mm W x 1444.8mm L, 8 Ribs

Main, for Viscous Fan

1шт.
