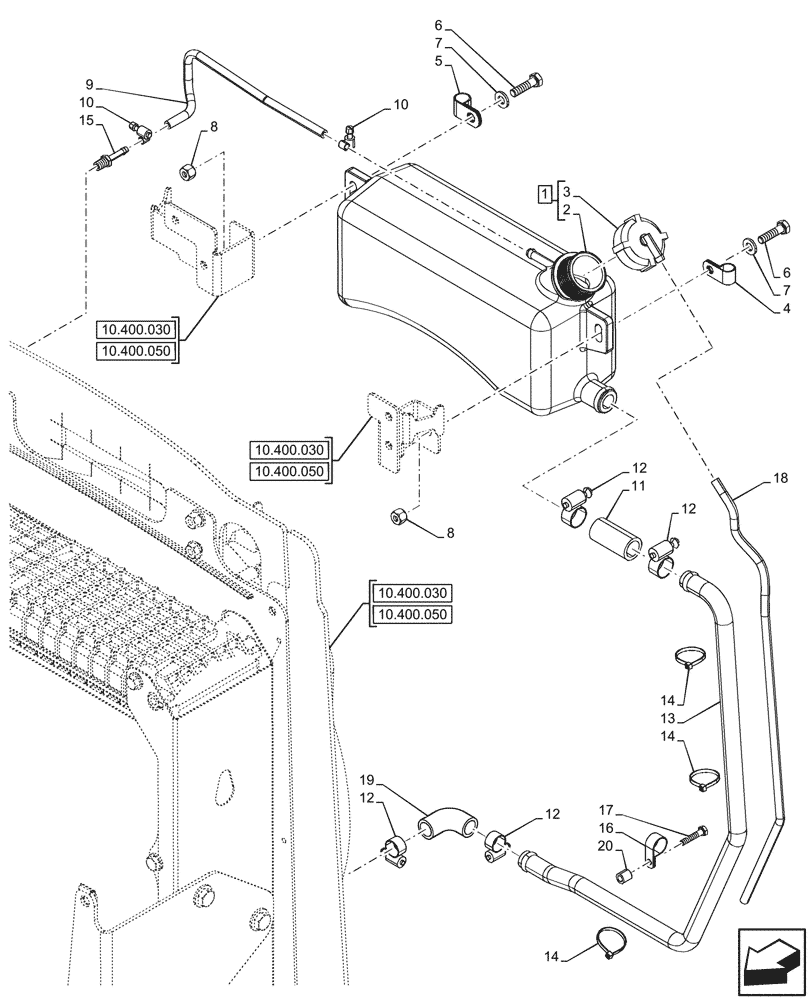

Запчасти Case 580SN WT (10.400.040) - VAR - 423000, 442082, 747853, 747854, 747855 - RADIATOR, EXPANSION TANK, HOSE (10) - ENGINE

1

87674844

RESERVOIR, COOLANT E,3L

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Recovery Bottle, Incl in 1

1шт.

3

85803019

RADIATOR CAP

1шт.

4

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

5

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

9

87715487

RADIATOR HOSE,7.90 mm ID x 440.00 mm, SAE J30, SAE 30R6 Or SAE 20 R4 Class D1

Recovery Bottle to Cooling Package

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

11

87367622

HOSE,25.40 mm ID x 60.00 mm, SAE 20R3 CLASS D-1 Or D-2

Recovery Bottle

1шт.

12

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

13

47540340

TUBE

Radiator Fill

1шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

15

87301325

FITTING,5/16" Hose X 1/4" NPTF Beaded

1шт.

16

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

17

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

18

87616934

HOSE,6.35mm ID x 750mm L, SAE 30R6

Radiator Bottle Overflow

1шт.

19

87454376

HOSE,25mm ID, 29.95mm OD, 90 Degree

Deaeration Elbow

1шт.

20

87418360

SPACER,9.8mm ID x 16mm OD x 16mm W

1шт.
