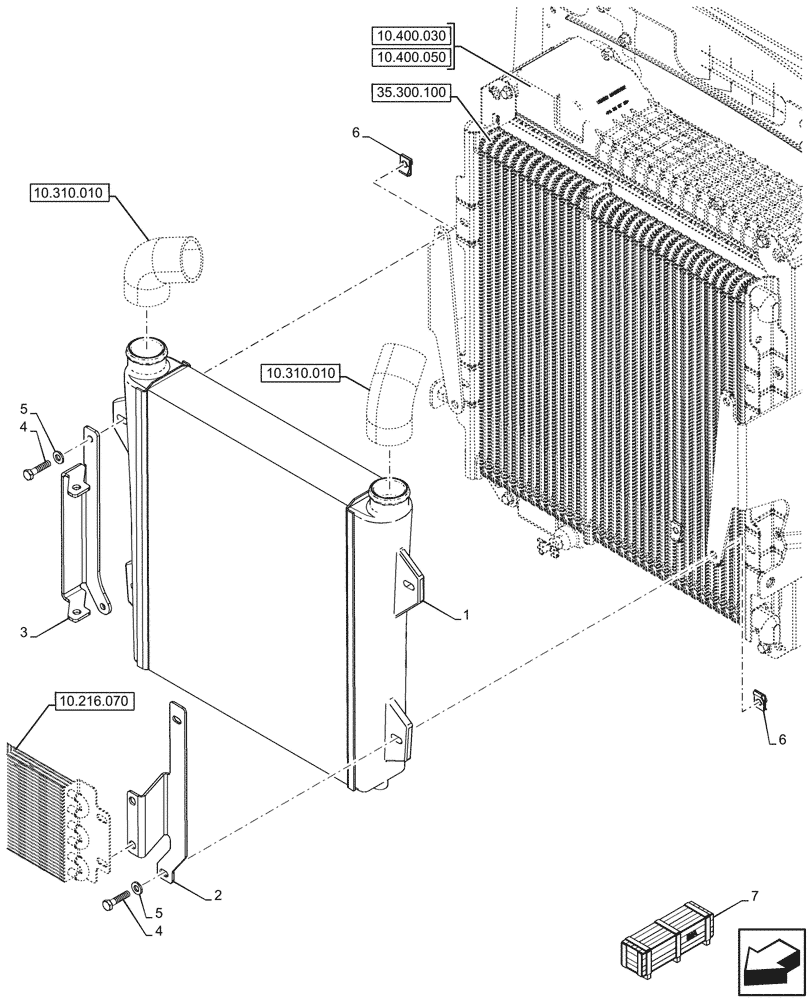

Запчасти Case 580SN WT (10.310.020) - VAR - 423000, 423001, 442082, 747854 - AFTERCOOLER (10) - ENGINE

1

47689743

INTERCOOLER

Charged Air

1шт.

2

87606979

BRACKET

LH, Support

1шт.

3

87606977

BRACKET, PIVOT

RH, Support

1шт.

4

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

833-40408

NUT,M8, U

4шт.

7

47955677

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 2, 3

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
