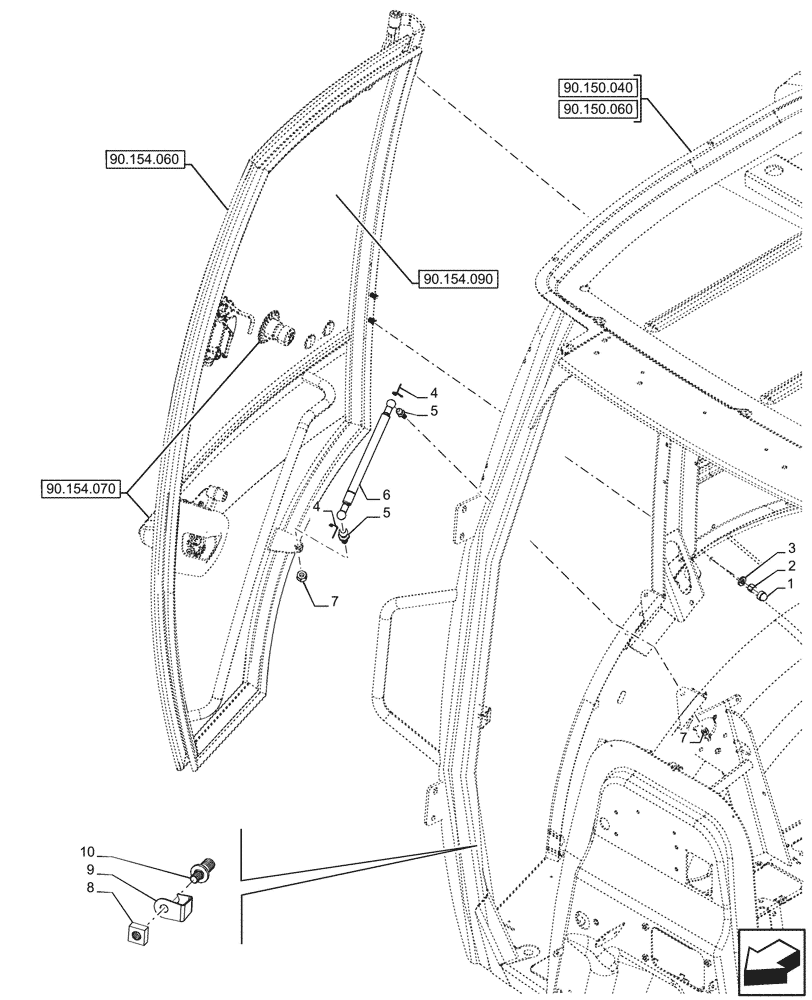

Запчасти Case 580SN WT (90.154.100) - VAR - 747853 - CAB, RIGHT, DOOR, RETAINER, STOP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

396841A1

CAP,3/8 Inch x 18.03mm L

4шт.

2

232-1446

NUT,3/8"-16, GC

4шт.

3

87039401

WASHER,0.41" ID x 0.81" OD x 0.13" Thk

4шт.

4

3233348R1

CLIP

2шт.

5

432431A1

BALL STUD,M8 x 1.25

1шт.

6

47710478

GAS STRUT

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

8

84497747

STRIKER PLATE

1шт.

9

84405935

GUARD

1шт.

10

84405934

BOLT,12mm OD x 52.3mm L

1шт.
