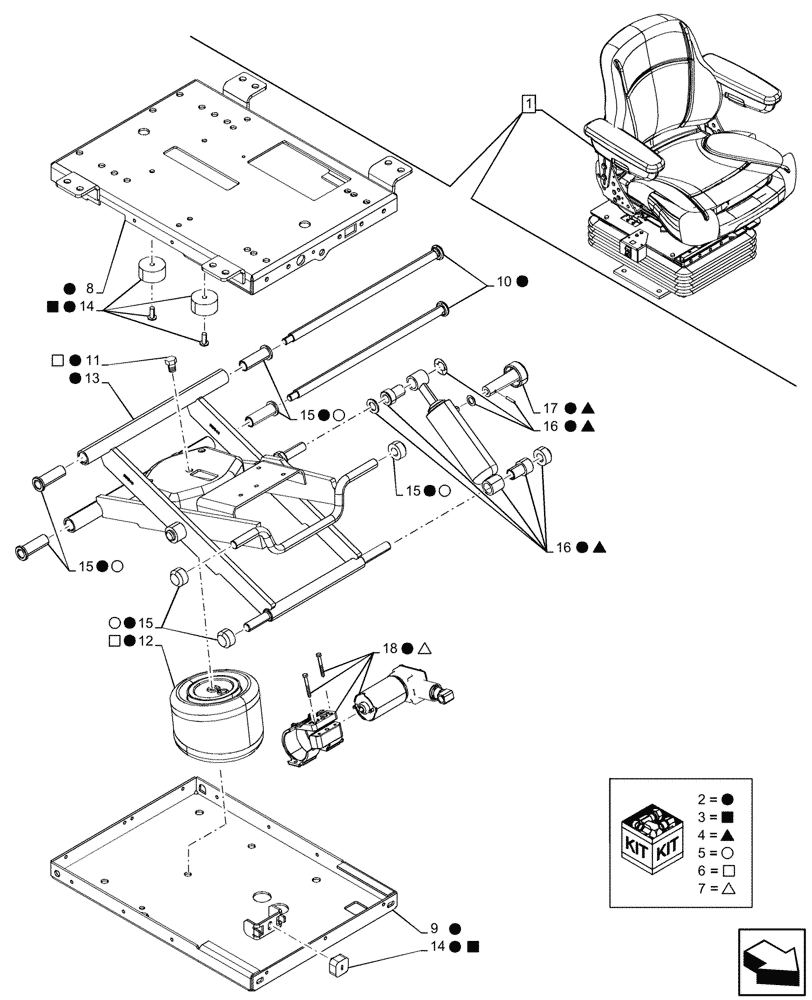

Запчасти Case 580SN WT (90.124.040) - VAR - 747897 - SEAT AIR SUSPENSION, CLOTH, SUSPENSION, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47946001

DRIVER SEAT

ASSY, Vinyl, Incl 2 - 18

1шт.

See also Driver Seat Components in Figures 90.120.08[01], 90.120.08[02], 90.120.08[03], 90.120.08[04] and 90.120.08[05]

1шт.

2

84276127

SERVICE KIT

ASSY, Air Suspension, Incl 3 - 18

1шт.

3

87475838

SERVICE KIT

Bumper

1шт.

4

87475837

SERVICE KIT

ASSY, Shock Absorber, Incl 16, 17

1шт.

5

87475841

BEARING SET

1шт.

6

87475834

SERVICE KIT

Airline and Fitting

1шт.

7

87475827

SERVICE KIT

Compressor, Ind. Boxed Service

1шт.

8

87475830

SERVICE KIT

Upper Housing Weldment

1шт.

9

86556264

HOUSING

Lower Housing Weldment

1шт.

10

143786A1

SHAFT,308.9mm L

2шт.

11

333279A2

KIT

Air Spring Service

1шт.

12

9845760

SPRING

Air

1шт.

13

87475831

SERVICE KIT

Suspension Arm Weldment

1шт.

14

NSS

NOT SOLD SEPARAT

Bumper, Incl in 2, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Roller, Incl in 2, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 2, Incl in 1

1шт.

17

87347974

SERVICE KIT

Knob

1шт.

18

NSS

NOT SOLD SEPARAT

Compressor, Incl in 2, 7, Incl in 1

1шт.
