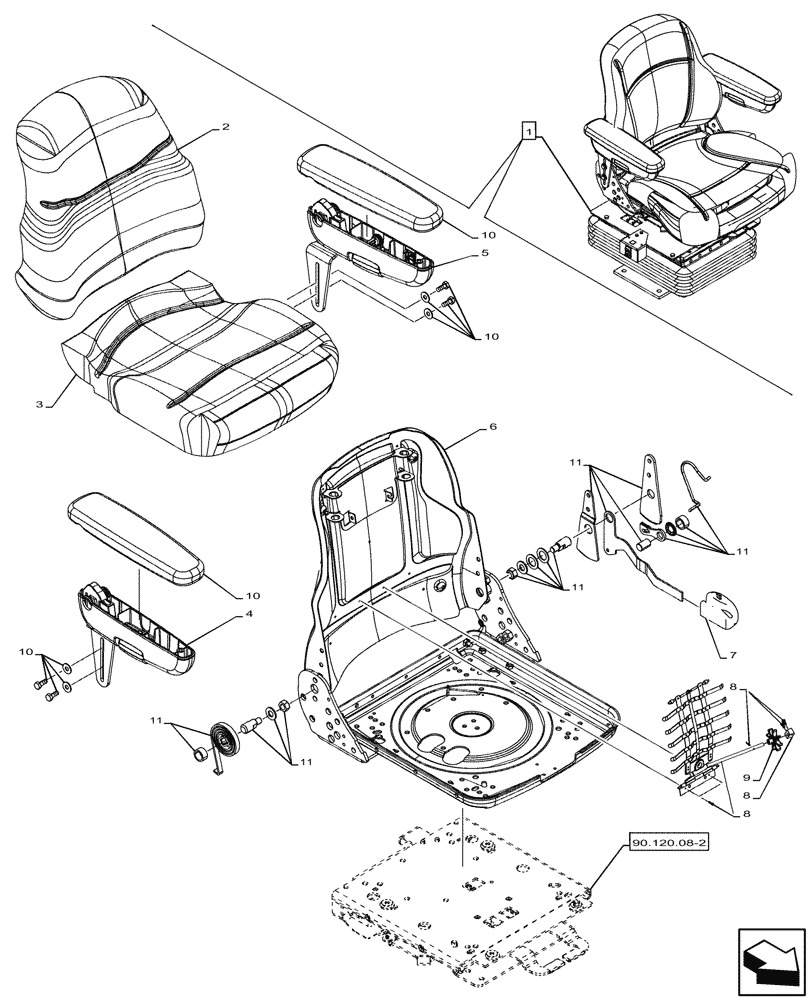

Запчасти Case 580SN WT (90.124.020) - VAR - 747897 - SEAT AIR SUSPENSION, CLOTH, CUSHION, ARMREST, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.08-2
7
11
9
6
10
10
3
4
2
8
11
11
11
10
11
8
5
1
10
8
№
Артикул
Название
Примечание
Количество
1
47946001
DRIVER SEAT
ASSY, Vinyl, Incl 2 - 11
1шт.
See also Driver Seat Components in Figures 90.120.08[01], 90.120.08[02], 90.120.08[03], 90.120.08[04] and 90.120.08[05]
1шт.
2
47944830
SEAT BACK
Vinyl
1шт.
3
47944829
SEAT CUSHION,Vinyl, Grey
Vinyl
1шт.
4
87308152
ARMREST
RH
1шт.
5
87308153
ARMREST
LH
1шт.
6
47944828
SEAT BACK
1шт.
7
87339800
KNOB
Recliner
1шт.
8
87308130
SEAT BACK ADJUST DEV
Lumbar Sears
1шт.
9
87037462
SEAT BACK ADJUST DEV
Lumbar Knob
1шт.
10
87308154
SEAT ACCESSORY
Arm Pad
2шт.
11
86994165
SEAT ACCESSORY
Service Recliner
1шт.
Выбрано товаров: 12
