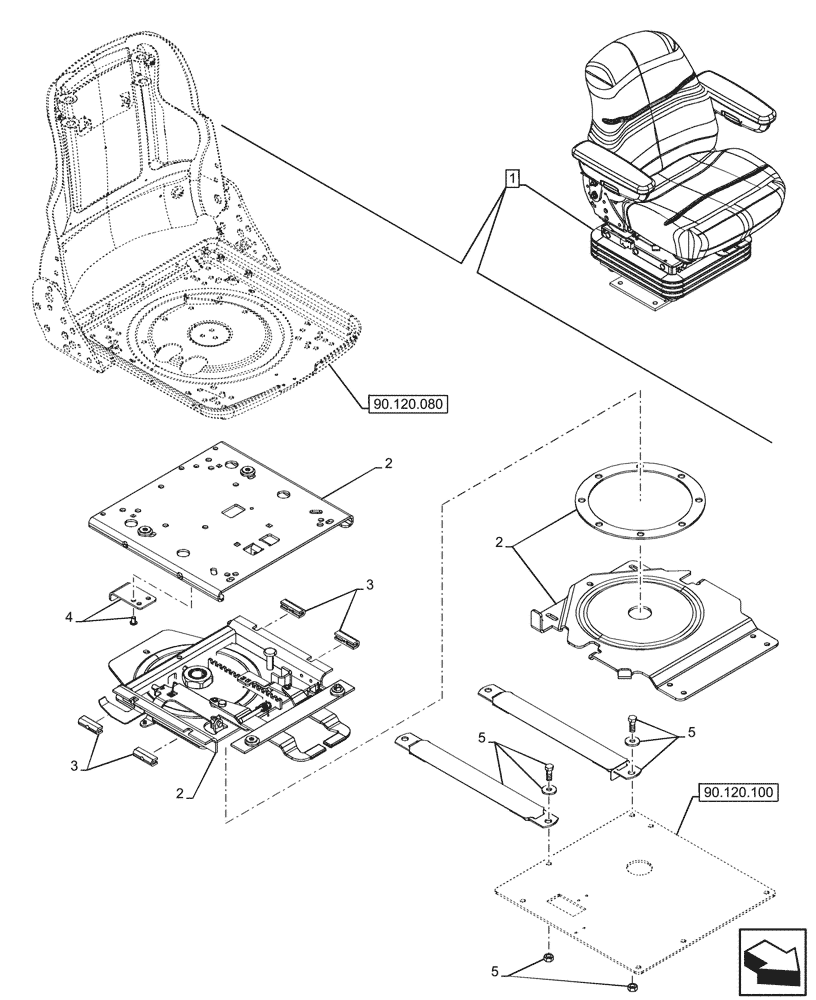

Запчасти Case 580SN WT (90.120.090) - VAR - 747770 - SEAT, MECHANICAL SUSPENSION, CLOTH, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.100
3
5
2
5
1
4
3
2
5
2
90.120.080
№
Артикул
Название
Примечание
Количество
1
47946002
DRIVER SEAT
ASSY, Cloth, Gray Fabric, Incl 2 - 5
1шт.
See also Driver Seat Components in Figures 55.512.250, 90.120.080, 90.120.100
1шт.
2
87308131
SEAT ACCESSORY
Swivel
1шт.
3
300680A1
KIT
Slide Puck
1шт.
4
84174986
BRACKET
Front Stop
1шт.
5
87308128
SEAT ACCESSORY
Tether Belt Service
1шт.
Выбрано товаров: 6
