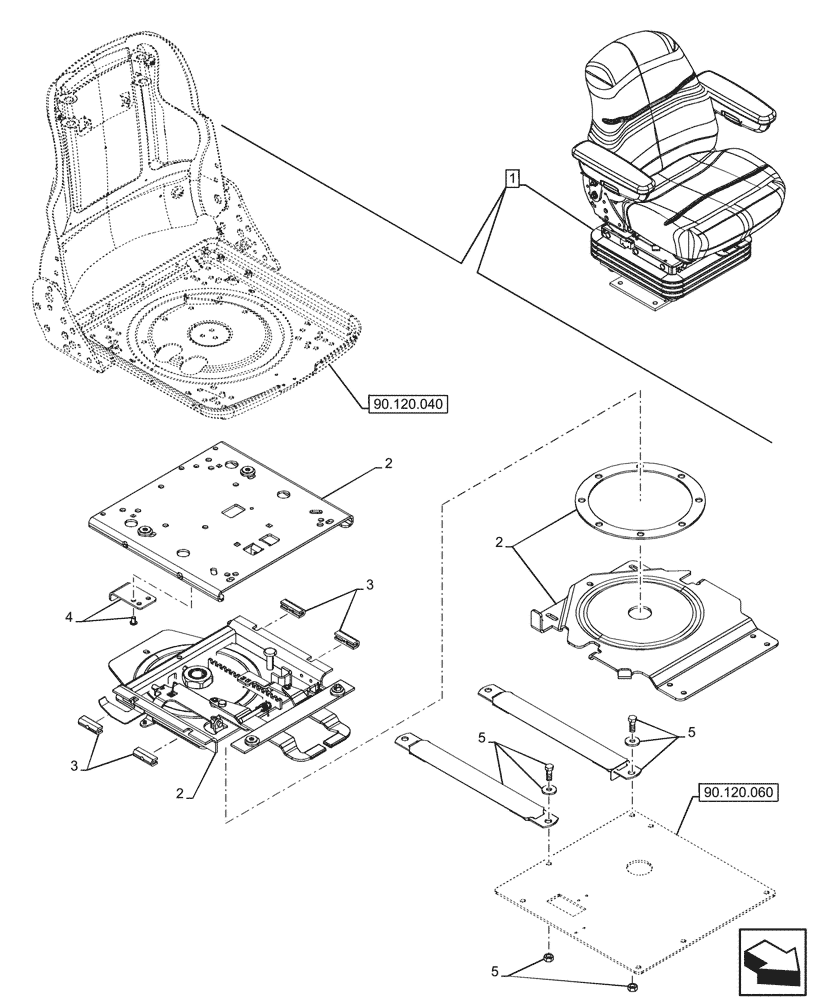

Запчасти Case 580SN WT (90.120.050) - VAR - 747851 - SEAT, MECHANICAL SUSPENSION, VYNIL, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.040
4
5
3
1
5
3
5
2
2
2
90.120.060
№
Артикул
Название
Примечание
Количество
1
47945920
DRIVER SEAT
ASSY, Gray Vinyl, Incl 2 - 5
1шт.
See also Driver Seat Components in Figures 55.512.240, 90.120.040, 90.120.060
1шт.
2
87308131
SEAT ACCESSORY
Swivel
1шт.
3
300680A1
KIT
Slide Puck
1шт.
4
84174986
BRACKET
Front Stop
1шт.
5
87308128
SEAT ACCESSORY
Tether Belt Service
1шт.
Выбрано товаров: 6
