(90.110.100) - VAR - 423000, 442082 - CANOPY, RIGHT SIDE, INSTRUMENT PANEL

Запчасти Case 580SN WT (90.110.100) - VAR - 423000, 442082 - CANOPY, RIGHT SIDE, INSTRUMENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

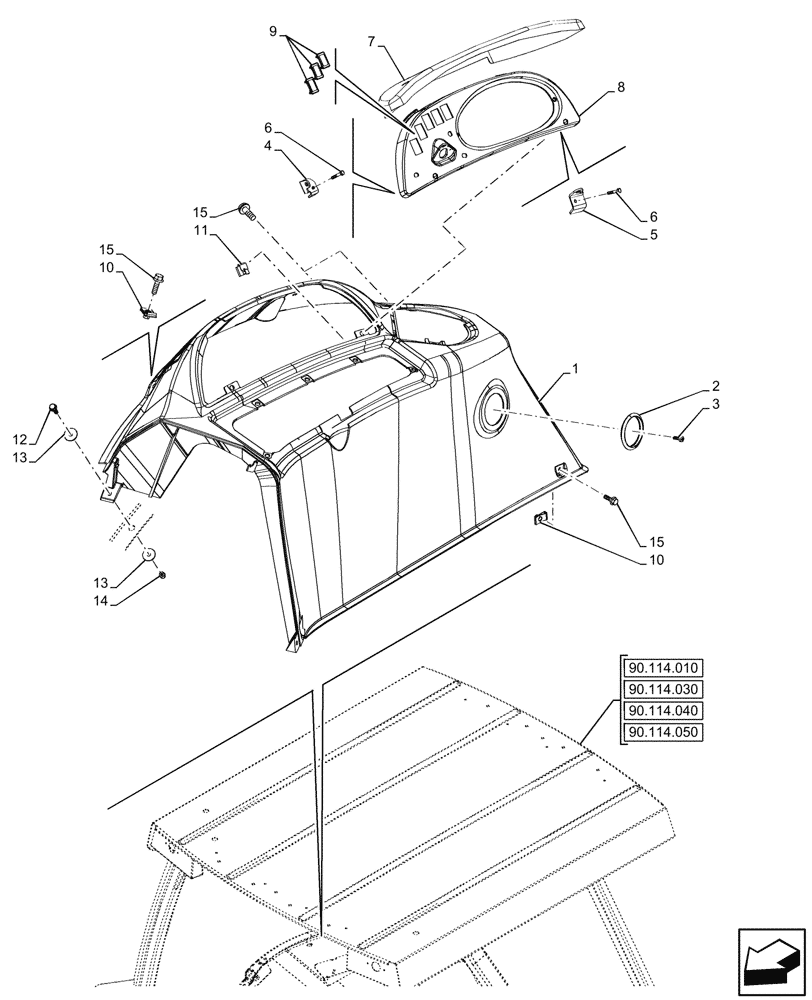

Схема запчастей Case 580SN WT - (90.110.100) - VAR - 423000, 442082 - CANOPY, RIGHT SIDE, INSTRUMENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.114.010
1
15
13
13
6
7
11
5
10
9
12
8
15
14
4
3
6
2
15
10
90.114.030
90.114.050
90.114.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47954919

TRIM PANEL

Side Canopy

1шт.

2

D93716

PLUG,73.mm ID x 88.9mm OD

2шт.

3

87310144

SELF-TAP SCREW,Pan Head, M6 x 12.7mm

4шт.

4

386368A2

BRACKET

LH

1шт.

5

386369A2

BRACKET

RH

1шт.

6

87310128

SCREW,Pan Cross Recess Phillips, #10 - 24 x 57.20mm, Stainless

2шт.

7

47954926

COVER

1шт.

8

391818A2

BEZEL

ASSY

1шт.

9

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole

3шт.

10

833-40406

NUT,M6, U

4шт.

11

86625077

SPRING NUT,J, Ret, #10-24

2шт.

12

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

13

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

14

832-10406

NUT,M6 x 1, Cl 8

1шт.

15

87310098

BOLT,M6 x 20 Full SST BLO

8шт.
