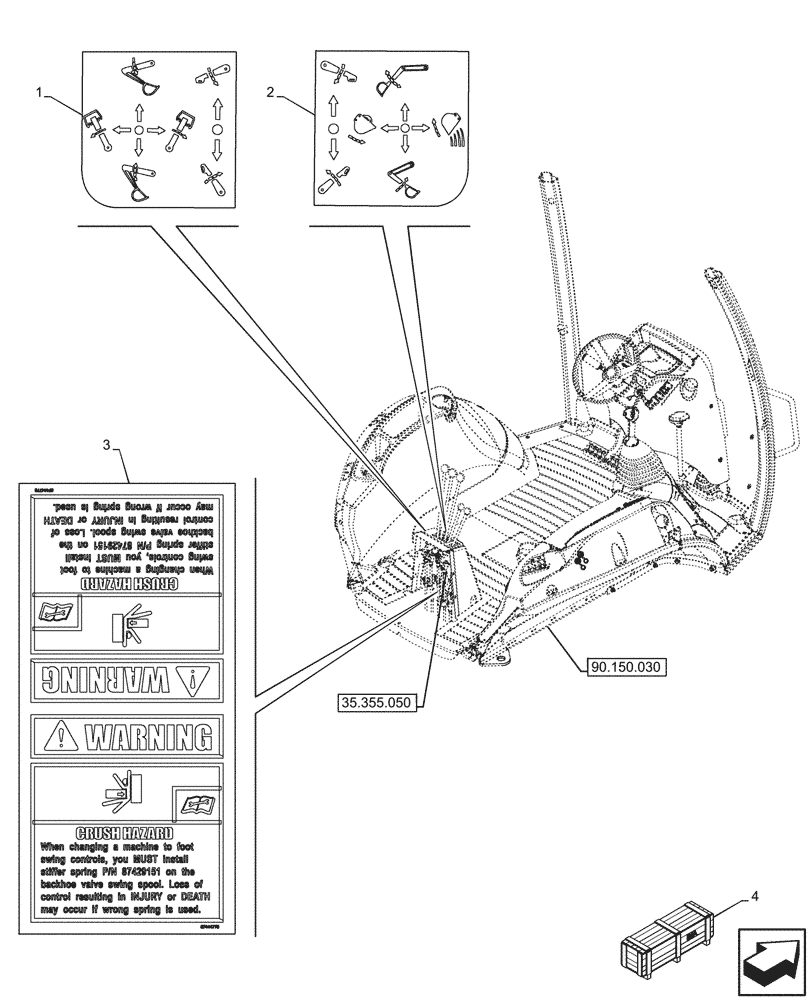

Запчасти Case 580SN WT (90.108.220) - VAR - 423056, 742242, 747882, 747883 - WARNING DECAL, MECHANICAL, CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D149828

DECAL

Upper; Standard Backhoe Control Pattern; with Hand Swing; LH Console

1шт.

2

D149829

DECAL

Upper; Standard Backhoe Control Pattern; with Hand Swing; RH Console

1шт.

3

87307896

WARNING DECAL

Crush Hazard; When Changing a Machine to Foot Swing Controls; French Canadian

1шт.

3

87307893

WARNING DECAL

Crush Hazard; When Changing a Machine to Foot Swing Controls; Spanish

1шт.

3

84149987

DECAL

White, Black, Crush Hazard; When Changing A Machine to Foot Swing Controls; Portuguese

1шт.

4

47945945

CONSTRUCTION DIA

Conversion Foot Swing to 2 Lever, Incl 1, 2

1шт.

Valid for All Models, W/ Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

4

47945946

CONSTRUCTION DIA

Conversion Foot Swing to 2 Lever, Incl 1, 2

1шт.

Valid for All Models, W/ Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
