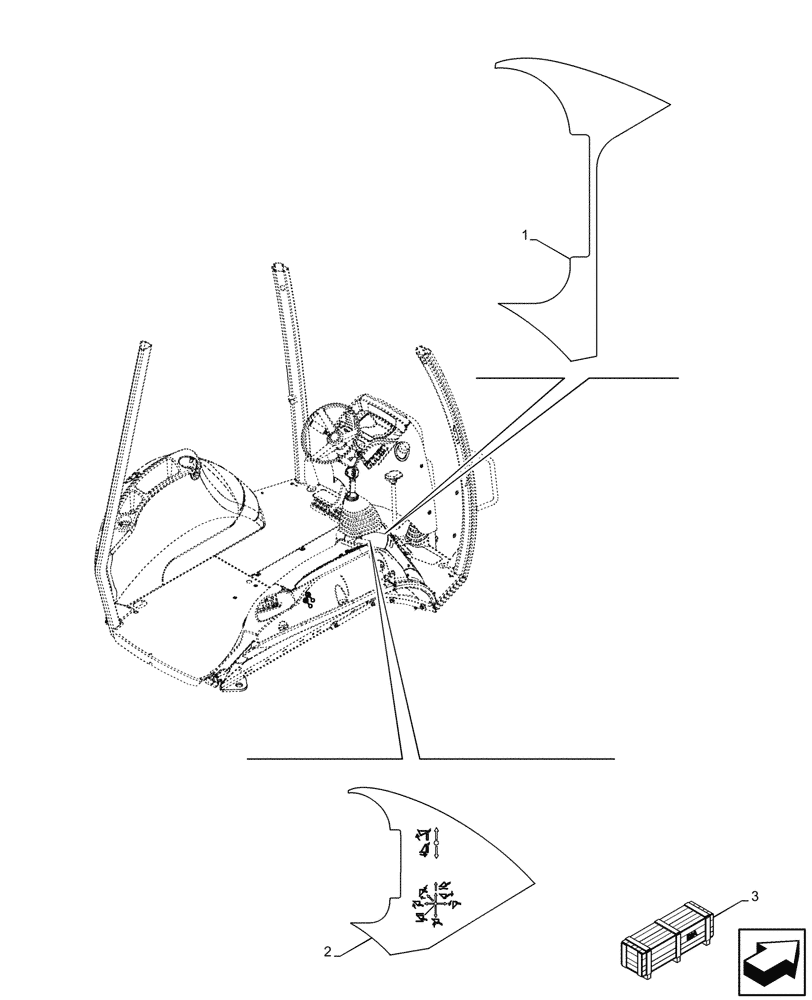

Запчасти Case 580SN WT (90.108.031) - 3-SPOOL CONTROL VALVE, TRANSMISSION, DECAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84292386

DECAL

Black, Loader Control

1шт.

2

84237478

DECAL

Three Function Loader Control

1шт.

3

47955704

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 2

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47955708

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 2

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Mechanical Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47955719

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 2

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47955728

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 2

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Mechanical Control and Standard Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47955736

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 2

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47955743

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 2

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
