Запчасти Case 580SN WT (90.108.026) - VAR - 742433 - 4-IN-1 BUCKET, WARNING DECAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

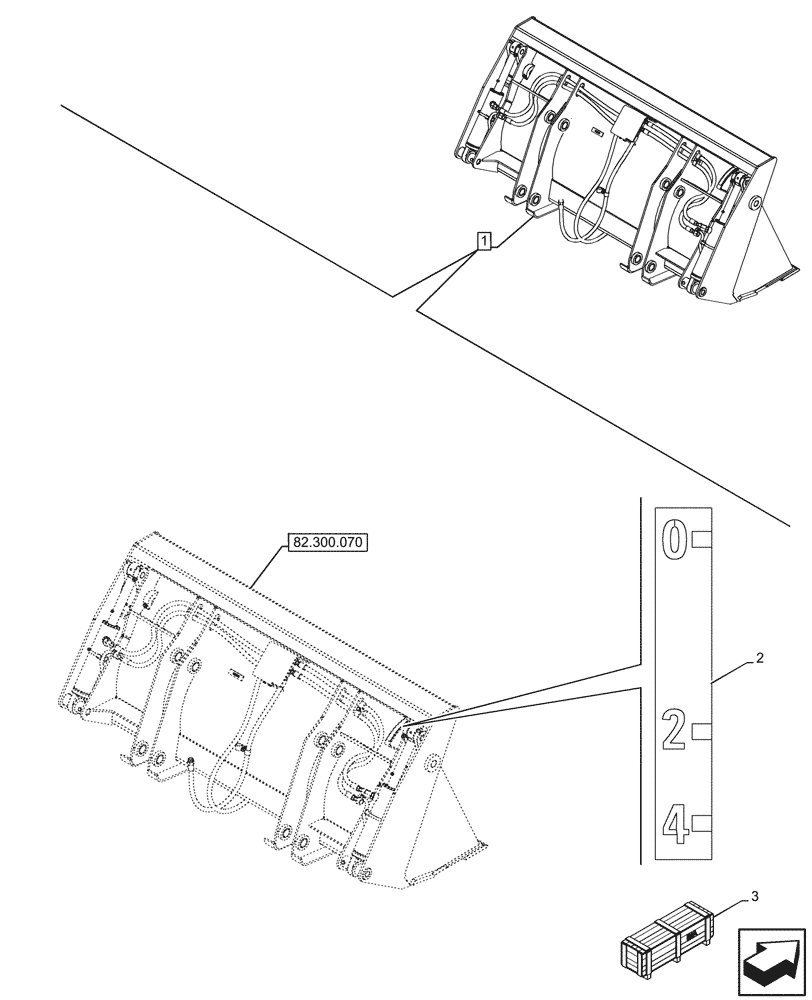

Схема запчастей Case 580SN WT - (90.108.026) - VAR - 742433 - 4-IN-1 BUCKET, WARNING DECAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
82.300.070
2
3
1

Артикул

Название

Примечание

Количество

1

47613232

4 IN 1 BUCKET,93" L

ASSY, 1.2 YD - 93In / 2362mm, Incl 2

1шт.

See also 4 In 1 Bucket Components in Figures 35.723.270, 35.723.280, 82.300.090

1шт.

2

321-1708

DECAL

0-2-4, Clam Bucket Opening Indicator

1шт.

3

47540572

CONSTRUCTION DIA

Bucket 93Inch 4 in 1, Incl 1, 2

1шт.

Valid for 590SN (Livery) NRC Model only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47553020

CONSTRUCTION DIA

Bucket 93Inch 4 in 1, Incl 1, 2

1шт.

Valid for 580SN WT (Livery) NRC Model only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84571018

BUCKET

Bucket 93 Inch 4 in 1, Incl 1, 2

1шт.

Valid for 580SN WT (Livery) NRC, 590SN (Livery) NRC Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 12
