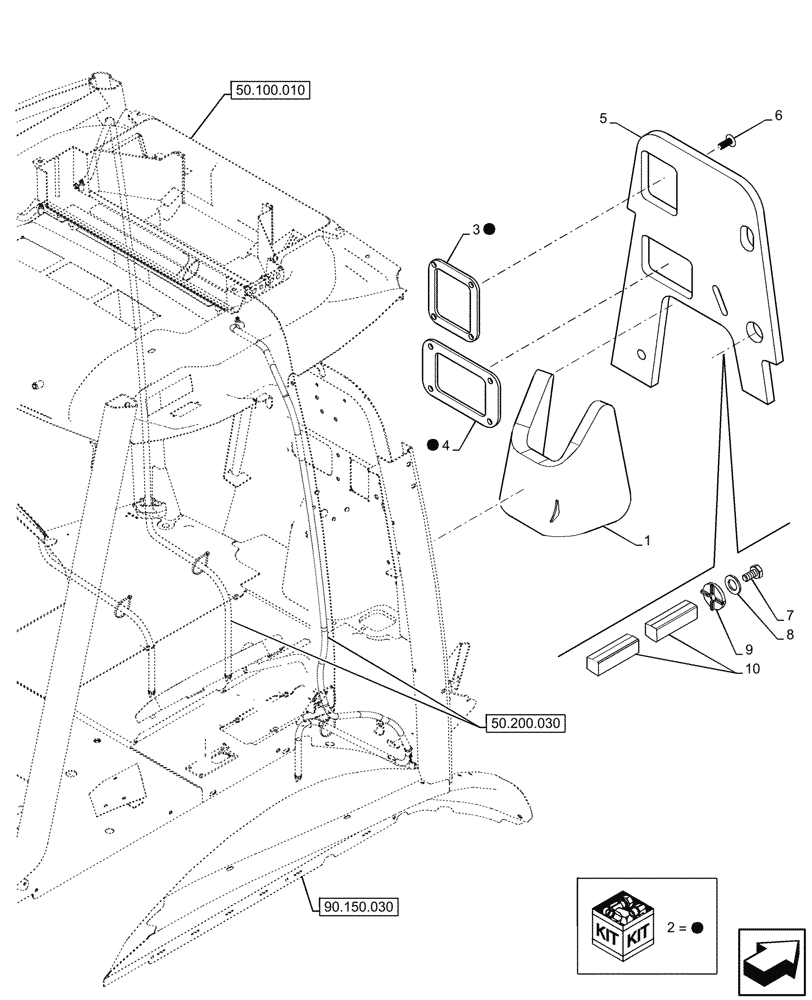

Запчасти Case 580SN WT (90.105.010) - VAR - 747853, 747854, 747855 - CAB, BULKHEAD, INSULATING PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87440283

COVER

Firewall, Lower

1шт.

2

87644496

GASKET KIT

ASSY, Bulkhead Insulation, Incl 3, 4

1шт.

3

87649405

GASKET,128mm L x 94mm L x 6mm L

Electrical

1шт.

4

87644495

GASKET,237mm L x 133mm L

Brake

1шт.

5

47591729

COVER

Firewall, Upper

1шт.

6

402610A1

FASTENER

8шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

8

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

9

87539792

COVER

1шт.

10

400200A1

RUBBER BLOCK,25mm L

2шт.
