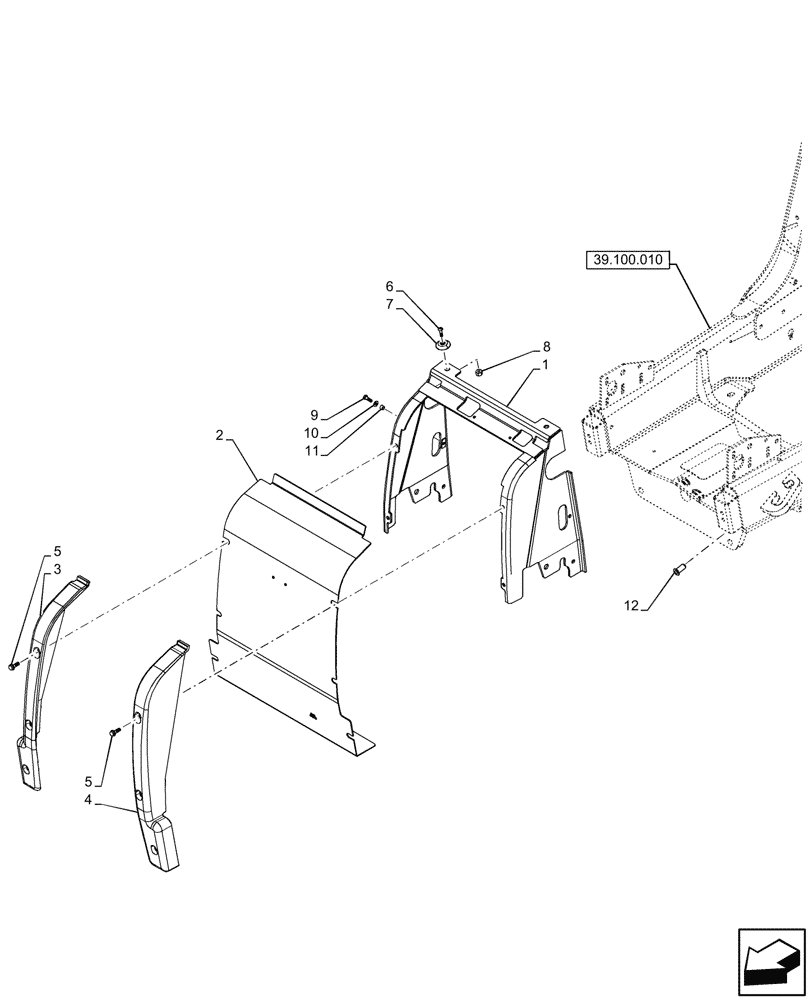

Запчасти Case 580SN WT (90.100.010) - ENGINE HOOD, GRILLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84393366

WRAPPER

Black

1шт.

2

47965524

SCREEN

1шт.

3

87719495

BUMPER

RH, Rubber

1шт.

4

87719497

BUMPER

LH, Rubber

1шт.

5

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

6шт.

6

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

2шт.

7

109879A1

SPACER,5.5mm ID x 30mm OD

2шт.

8

231-14109

LOCK NUT,#10-24, GB

2шт.

9

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

11

396605A1

SPACER,10.31mm ID x 15.88mm OD x 10mm L

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.
