(84.912.150) - EXTENDABLE DIPPER, W/ HYDRAULIC COUPLER

Запчасти Case 580SN WT (84.912.150) - EXTENDABLE DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS

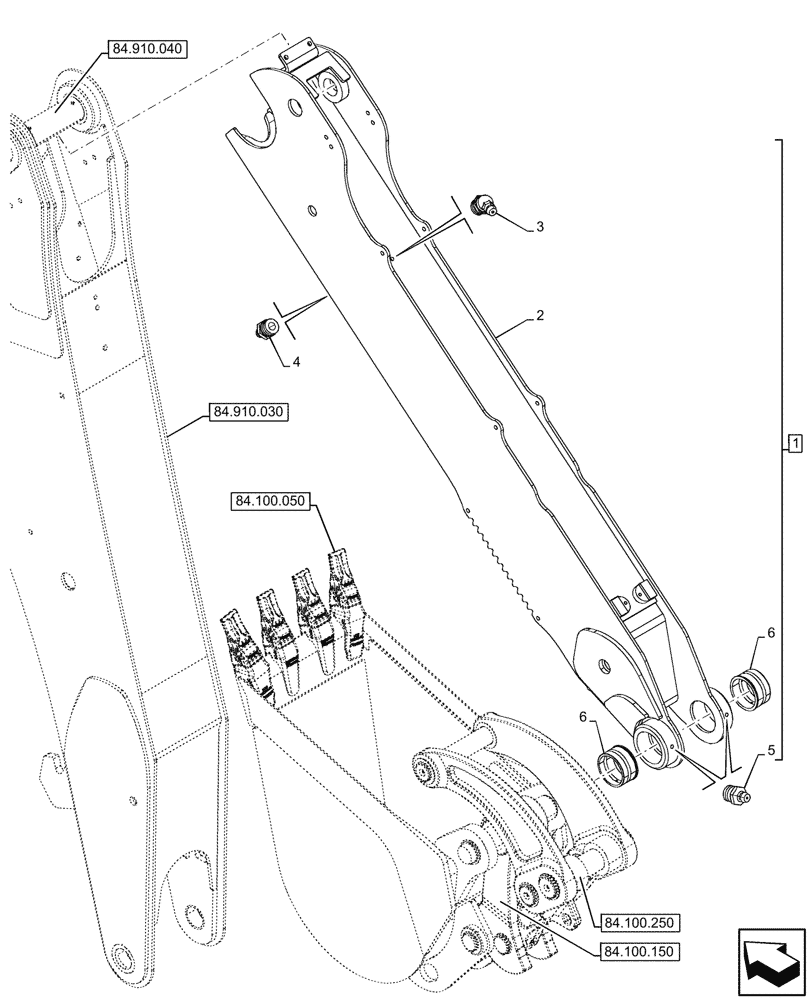

Схема запчастей Case 580SN WT - (84.912.150) - EXTENDABLE DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS
84.100.050
2
3
6
4
1
5
6
84.100.250
84.910.040
84.910.030
84.100.150
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47615275

DIPPER

ASSY, Power Tan, Fixed Arm, Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Extendable Dipper, Incl in 1

1шт.

3

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

1шт.

4

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

6

400934A2

BUSHING,89.13mm ID x 105mm OD x 54mm L

2шт.
