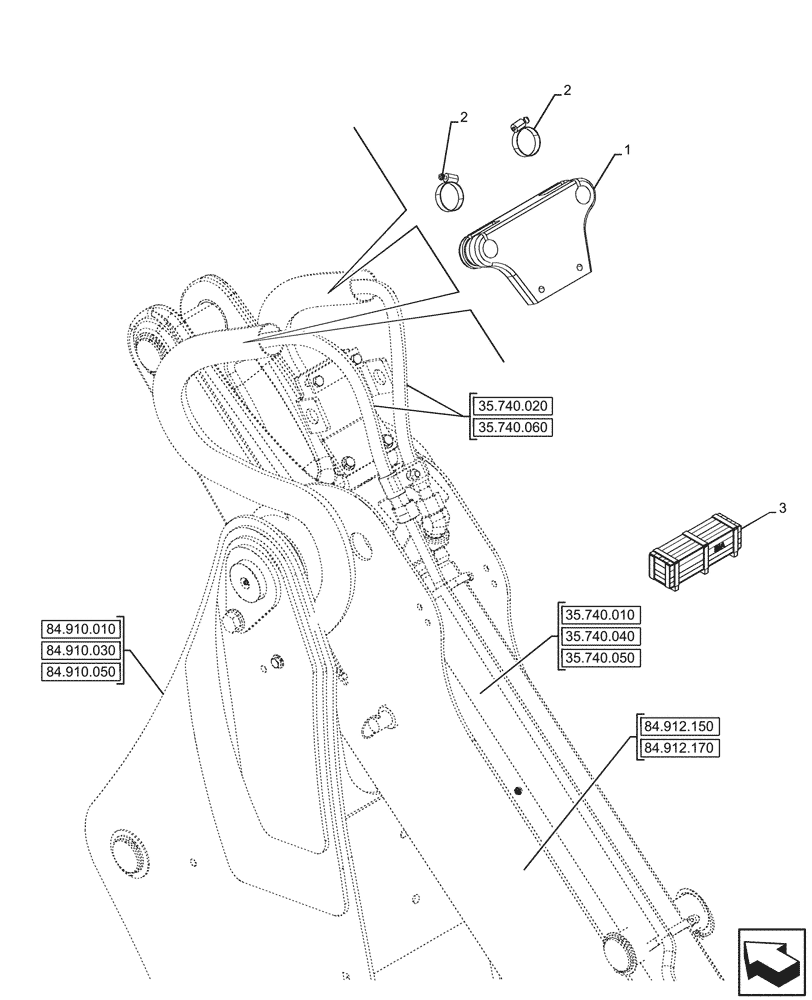

Запчасти Case 580SN WT (84.912.010) - EXTENDABLE DIPPER, SUPPORT, LINE (84) - BOOMS, DIPPERS & BUCKETS

1

84360628

SUPPORT

Hose Auxiliary Hydraulic

1шт.

2

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

3

47945904

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1, 2

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Hand Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47945939

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1, 2

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Foot Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47946552

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1, 2

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Foot Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47945950

CONSTRUCTION DIA

Standard Dipper to Extendahoe Dipper Conversion, Incl 1, 2

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Hand Swing Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
