(82.300.080) - VAR - 742433 - 4-IN-1 BUCKET, 93INCH/2362MM

Запчасти Case 580SN WT (82.300.080) - VAR - 742433 - 4-IN-1 BUCKET, 93INCH/2362MM (82) - FRONT LOADER & BUCKET

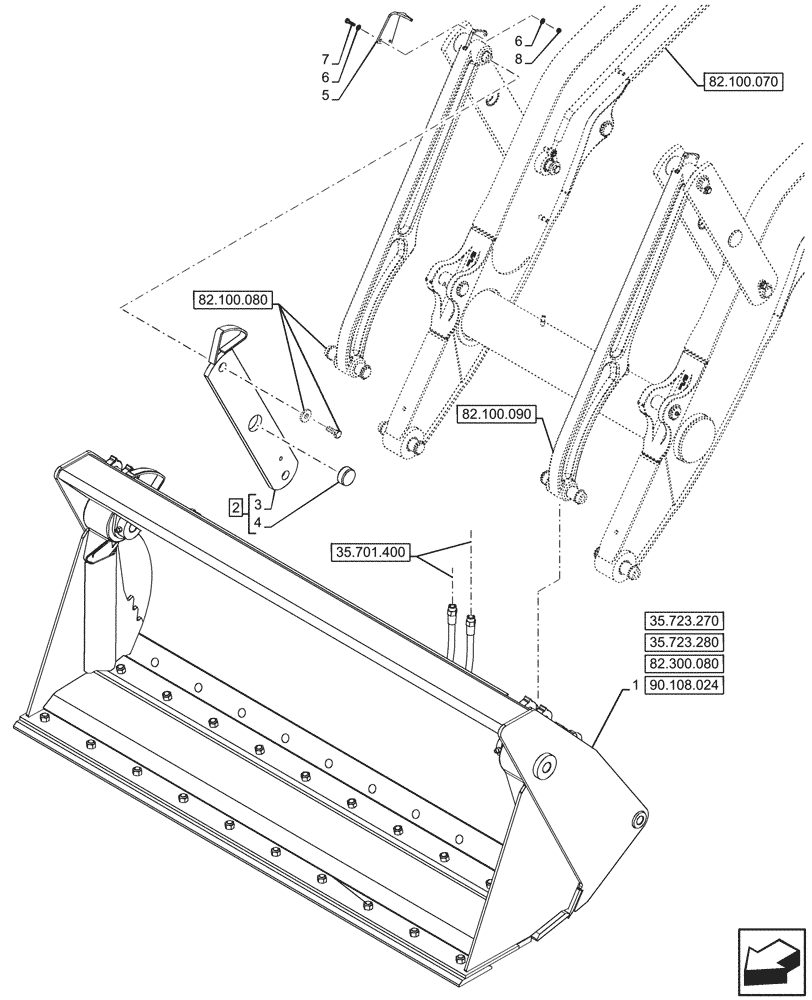

Схема запчастей Case 580SN WT - (82.300.080) - VAR - 742433 - 4-IN-1 BUCKET, 93INCH/2362MM (82) - FRONT LOADER & BUCKET
82.100.080
4
1
8
5
6
2
6
7
3
82.100.090
35.723.270
90.108.024
82.300.080
82.100.070
35.723.280
35.701.400
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47613232

4 IN 1 BUCKET,93" L

ASSY, 1.2 YD - 93In / 2362mm

1шт.

2

47959581

LINK

ASSY, Grey, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Link, Incl in 2

1шт.

4

47865950

BUSHING,50.26mm ID x 59.98mm OD x 25.4mm L

1шт.

5

48017563

POINTER

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

7

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
