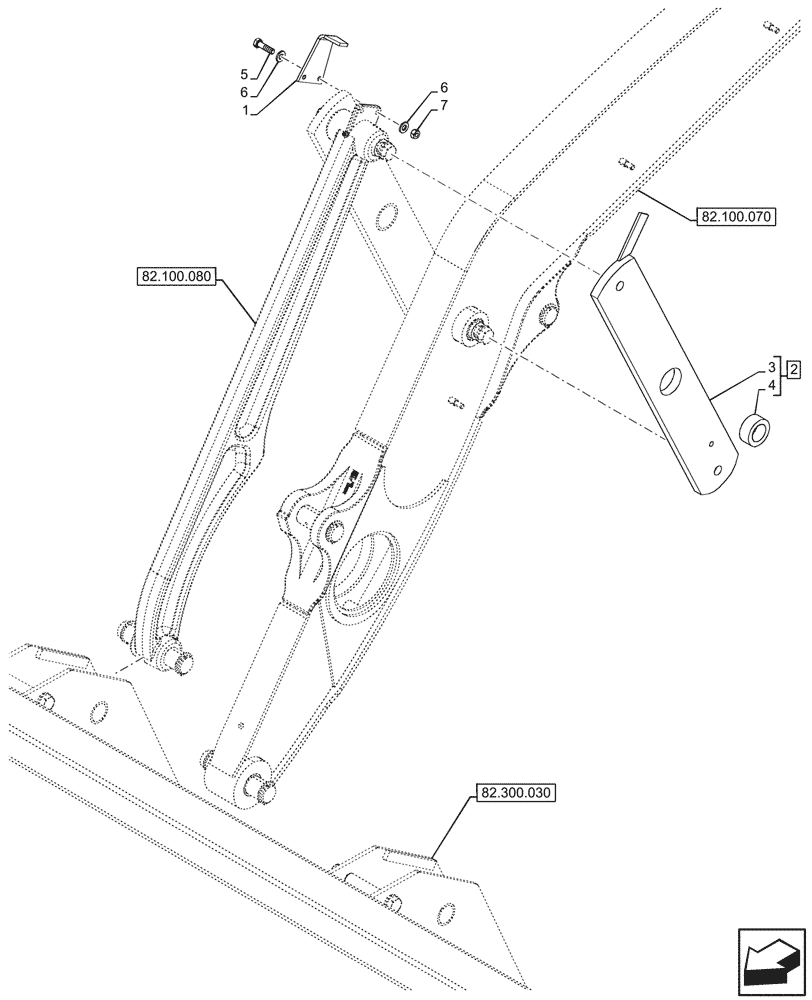

Запчасти Case 580SN WT (82.100.110) - VAR - 423049, 747539 - LOADER ARM, LINK (82) - FRONT LOADER & BUCKET

1

48018829

POINTER

Red

1шт.

2

47959100

LINK

ASSY, Grey, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Link, Incl in 2

1шт.

4

47865950

BUSHING,50.26mm ID x 59.98mm OD x 25.4mm L

1шт.

5

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
