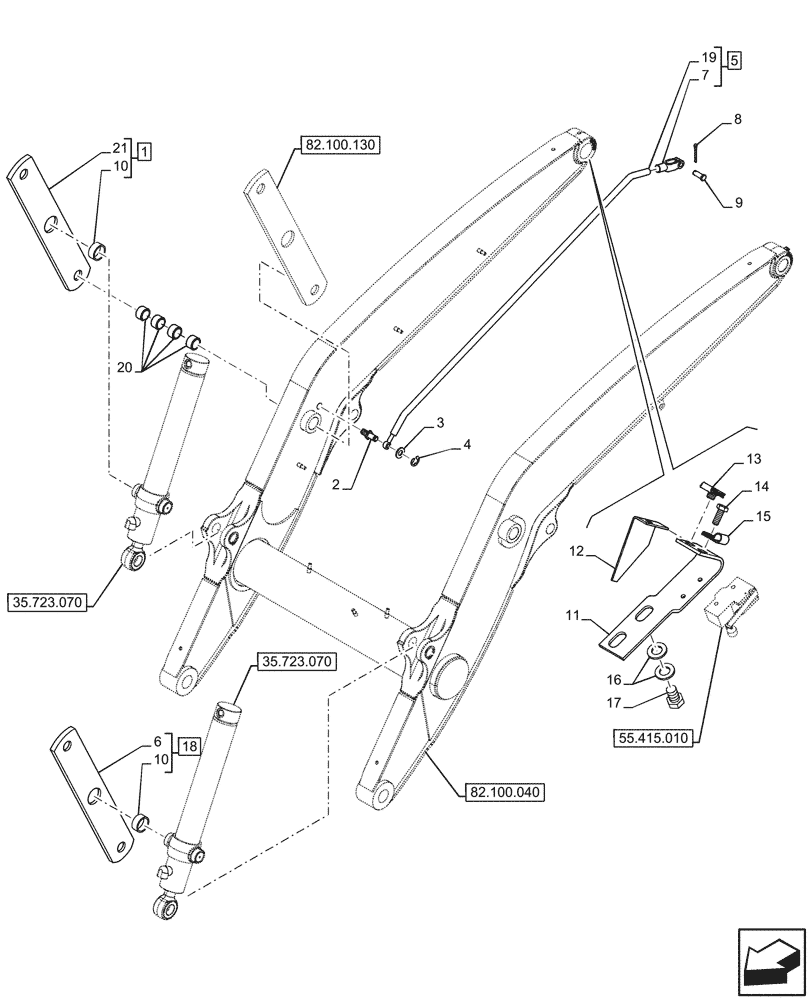

Запчасти Case 580SN WT (82.100.080) - ARM, LINKAGE, 4WD (82) - FRONT LOADER & BUCKET

1

47948333

LINK

ASSY, Grey, Incl 10 (Qty 2), 21

2шт.

2

192815A1

PIN,1/2" - 13, 1.85" L

1шт.

3

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

4

103-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

5

84280257

ROD

ASSY, Power Tan, Incl 7, 19

1шт.

6

NSS

NOT SOLD SEPARAT

Link, Incl in 18

1шт.

7

D134900

CLEVIS,3/8-24"

1шт.

8

432-612

COTTER PIN,3/32" x 3/4"

1шт.

9

87548980

CLEVIS PIN,3/8" x 1"

1шт.

10

47865950

BUSHING,50.26mm ID x 59.98mm OD x 25.4mm L

3шт.

11

128818A1

SUPPORT

Switch

1шт.

12

142524A1

PROTECTOR

1шт.

13

833-40406

NUT,M6, U

2шт.

14

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

15

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

1шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

17

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

2шт.

18

47948341

LINK

ASSY, Grey, Incl 6, 10 (Qty 1)

1шт.

19

NSS

NOT SOLD SEPARAT

Rod, Incl in 5

1шт.

20

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

8шт.

21

NSS

NOT SOLD SEPARAT

Link, Incl in 1

2шт.
