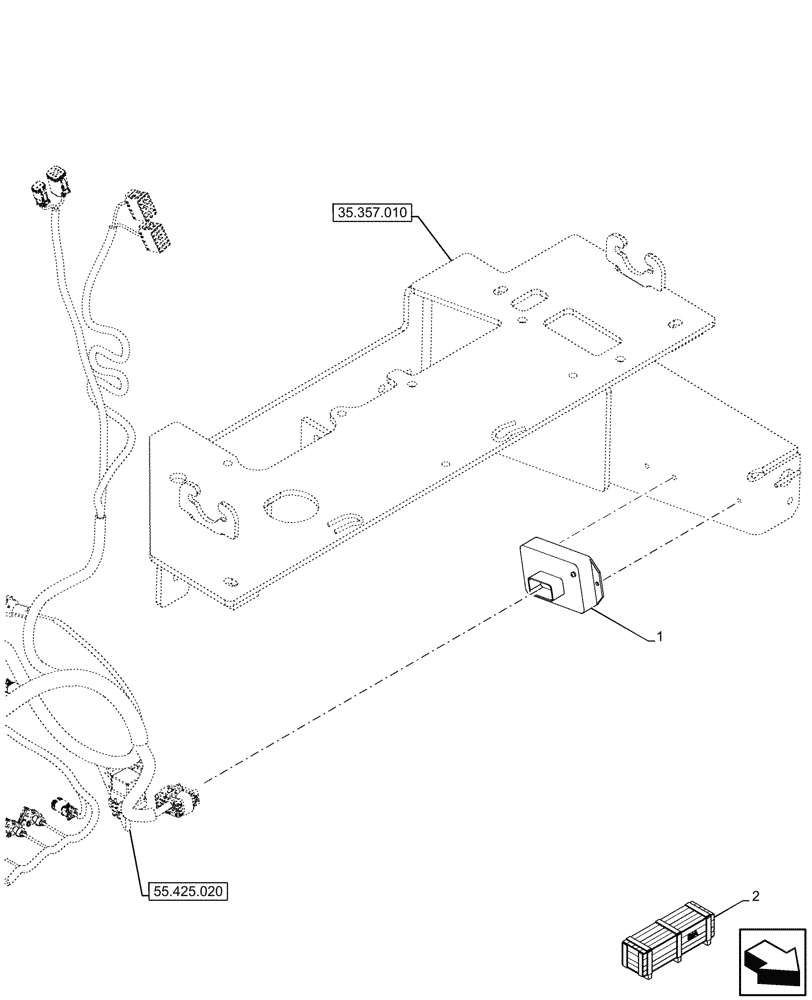

Запчасти Case 580SN WT (55.640.040) - 7-SPOOL, 8-SPOOL, ELECTRONIC CONTROL UNIT, W/ PILOT CONTROLS, W/ DOUBLE AUXILIARY HYDRAULIC (55) - ELECTRICAL SYSTEMS

1

84266025

MODULE

Pilot Control

1шт.

2

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Extendable Dipper, Pilot Control, Incl 1

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1

1шт.

Valid for 580SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47661908

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Incl 1

1шт.

Valid for 580SN (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Standard Transmission and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47662021

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1

1шт.

Valid for 580SN (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47662033

CONSTRUCTION DIA

Uni-Auxiliary to Combo Auxiliary, Incl 1

1шт.

Valid for 580SN (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
