Запчасти Case 580SN WT (55.512.210) - VALVE HEAVY LIFT, COMPONENTS, SOLENOID (55) - ELECTRICAL SYSTEMS

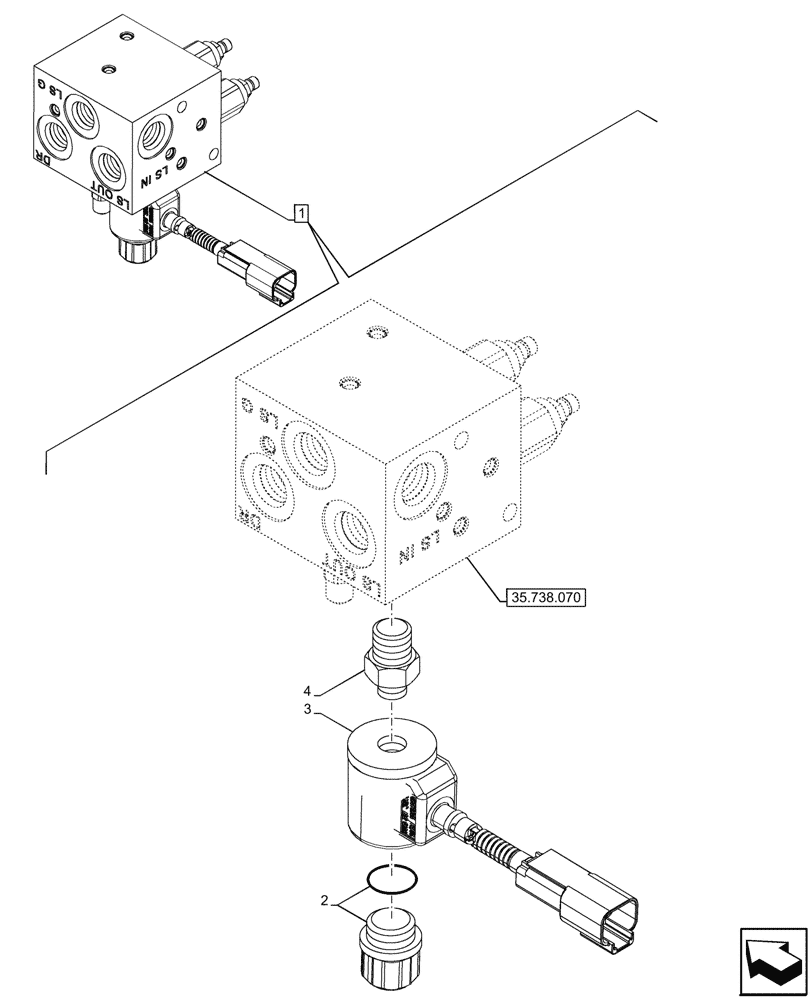

Схема запчастей Case 580SN WT - (55.512.210) - VALVE HEAVY LIFT, COMPONENTS, SOLENOID (55) - ELECTRICAL SYSTEMS
35.738.070
1
3
4
2

Артикул

Название

Примечание

Количество

1

84527718

CONTROL VALVE

ASSY, Heavy Lift Pilot Control, Incl 2 - 4

1шт.

See also Control Valve Components in Figure 35.738.070

1шт.

2

84338936

SERVICE KIT

1шт.

3

84338935

COIL

1шт.

4

84545954

SOLENOID VALVE

Power Lift

1шт.

Выбрано товаров: 5
