(55.512.200) - VALVE HEAVY LIFT, COMPONENTS, SOLENOID

Запчасти Case 580SN WT (55.512.200) - VALVE HEAVY LIFT, COMPONENTS, SOLENOID (55) - ELECTRICAL SYSTEMS

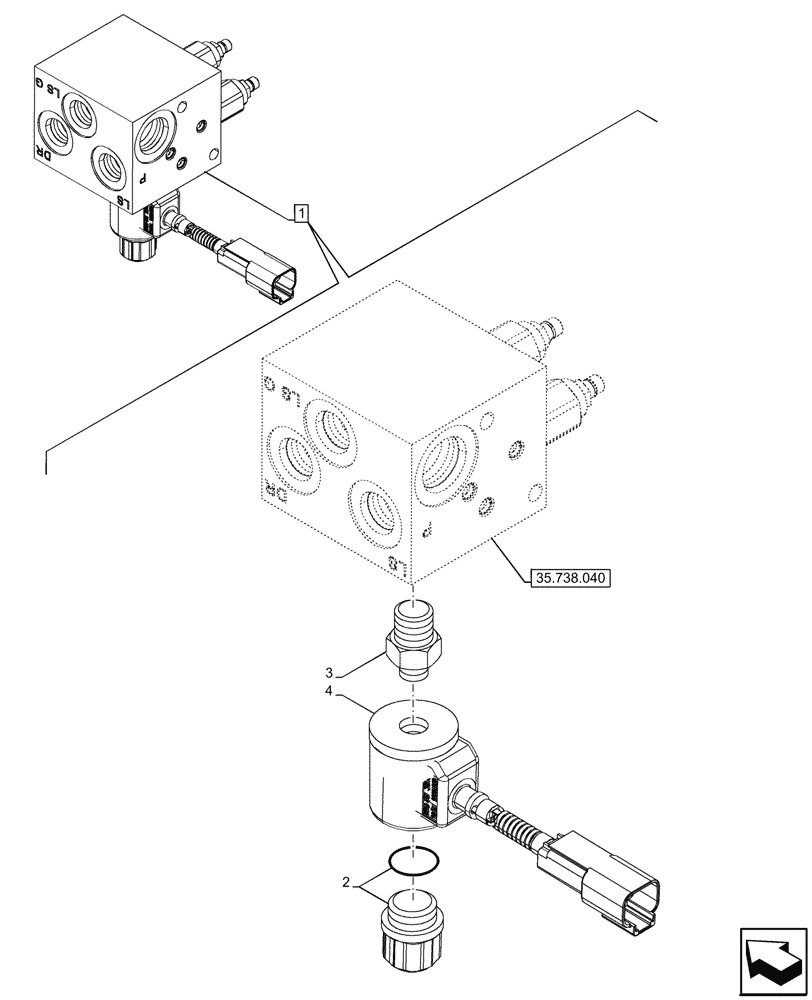

Схема запчастей Case 580SN WT - (55.512.200) - VALVE HEAVY LIFT, COMPONENTS, SOLENOID (55) - ELECTRICAL SYSTEMS
35.738.040
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527714

CONTROL VALVE

ASSY, Heavy Lift, Incl 2 - 4

1шт.

See also Control Valve Components in Figure 35.738.020

1шт.

2

84338936

SERVICE KIT

1шт.

3

84545954

SOLENOID VALVE

Power Lift

1шт.

4

84338935

COIL

1шт.
