(55.510.070) - VAR - 423060, 423061, 423062 - SEMI-POWERSHIFT, POWERSHIFT, TRANSMISSION, SIDE, CONSOLE, HARNESS

Запчасти Case 580SN WT (55.510.070) - VAR - 423060, 423061, 423062 - SEMI-POWERSHIFT, POWERSHIFT, TRANSMISSION, SIDE, CONSOLE, HARNESS (55) - ELECTRICAL SYSTEMS

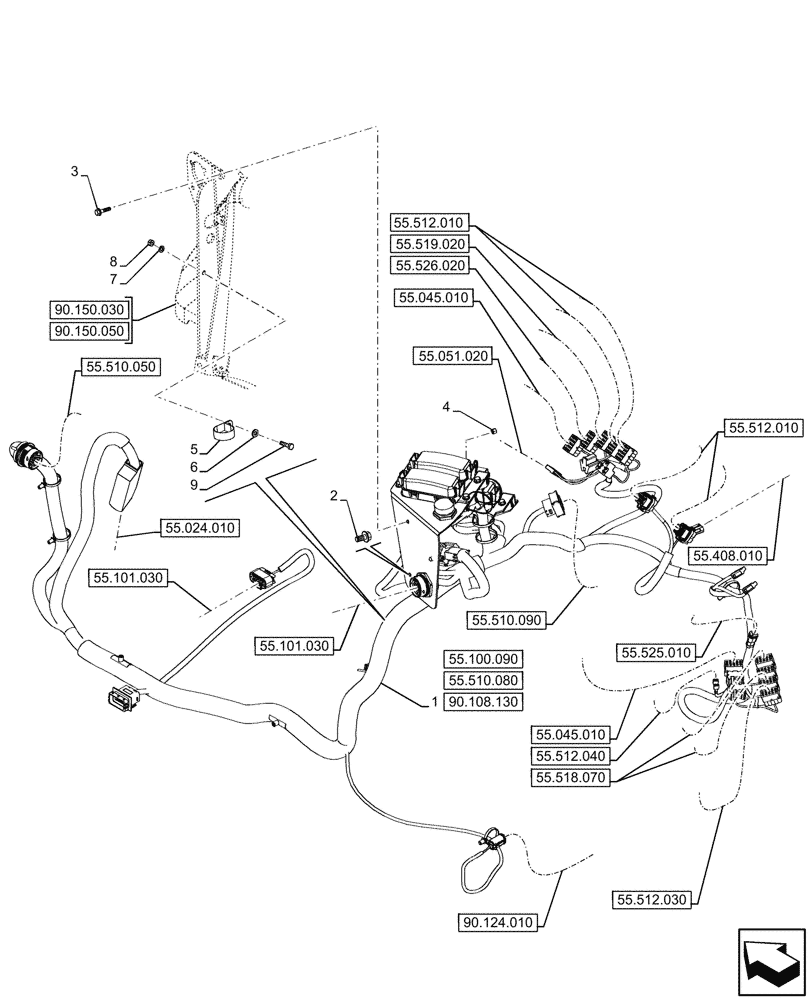

Схема запчастей Case 580SN WT - (55.510.070) - VAR - 423060, 423061, 423062 - SEMI-POWERSHIFT, POWERSHIFT, TRANSMISSION, SIDE, CONSOLE, HARNESS (55) - ELECTRICAL SYSTEMS
55.101.030
6
8
3
7
5
4
2
1
9
90.124.010
90.108.130
55.510.050
55.512.030
55.408.010
55.519.020
55.510.090
55.526.020
55.100.090
55.518.070
55.525.010
55.512.010
55.512.010
55.045.010
55.045.010
55.051.020
55.510.080
55.024.010
55.512.040
90.150.030
90.150.050
55.101.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47714200

WIRE HARNESS

SPS/PWR Transmission, Right Side

1шт.

2

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

3

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

4

832-10406

NUT,M6 x 1, Cl 8

2шт.

5

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

7

892-11008

LOCK WASHER,8mm ID

1шт.

8

824-1408

NUT,M8 x 1.25, Cl 10

1шт.

9

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.
