Запчасти Case 580SN WT (55.510.050) - VAR - 423060, 423061, 423062 - SEMI-POWERSHIFT, POWERSHIFT, TRANSMISSION, FRONT, CONSOLE, HARNESS (55) - ELECTRICAL SYSTEMS

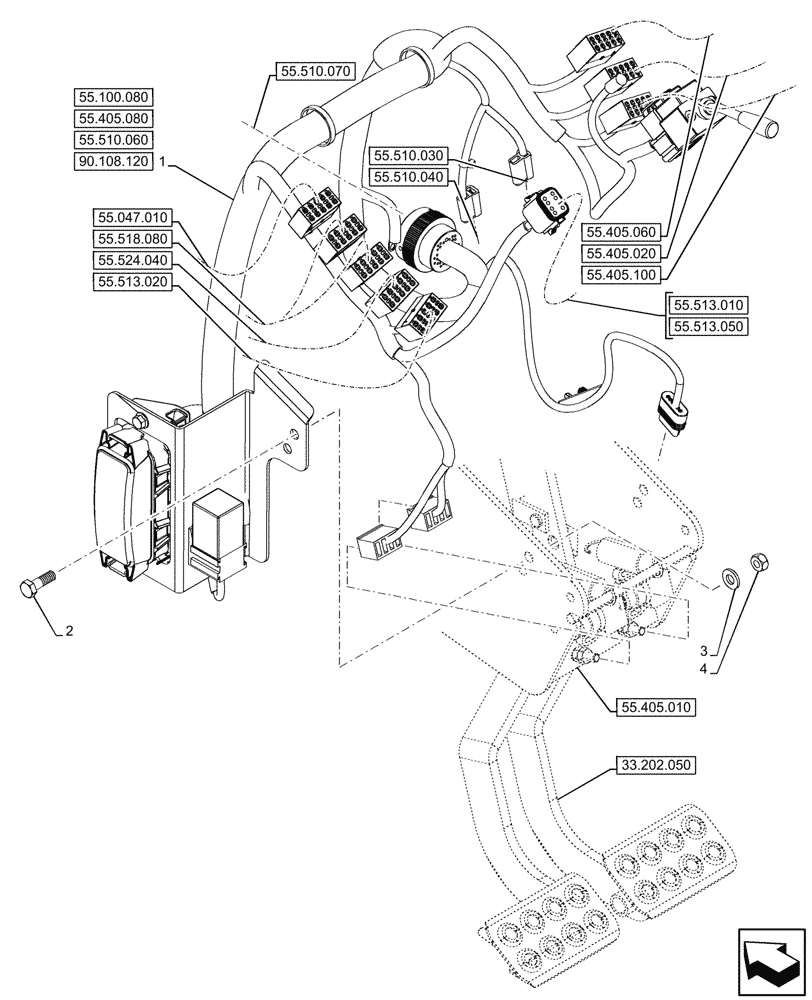

Схема запчастей Case 580SN WT - (55.510.050) - VAR - 423060, 423061, 423062 - SEMI-POWERSHIFT, POWERSHIFT, TRANSMISSION, FRONT, CONSOLE, HARNESS (55) - ELECTRICAL SYSTEMS
55.524.040
2
1
4
3
55.047.010
55.513.050
55.510.030
55.513.010
55.510.040
55.405.100
55.405.060
55.513.020
55.510.060
55.518.080
90.108.120
33.202.050
55.510.070
55.405.010
55.405.020
55.405.080
55.100.080

Артикул

Название

Примечание

Количество

1

84342261

WIRE HARNESS

SPS/PWR Transmission, Front Console

1шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

Выбрано товаров: 4
