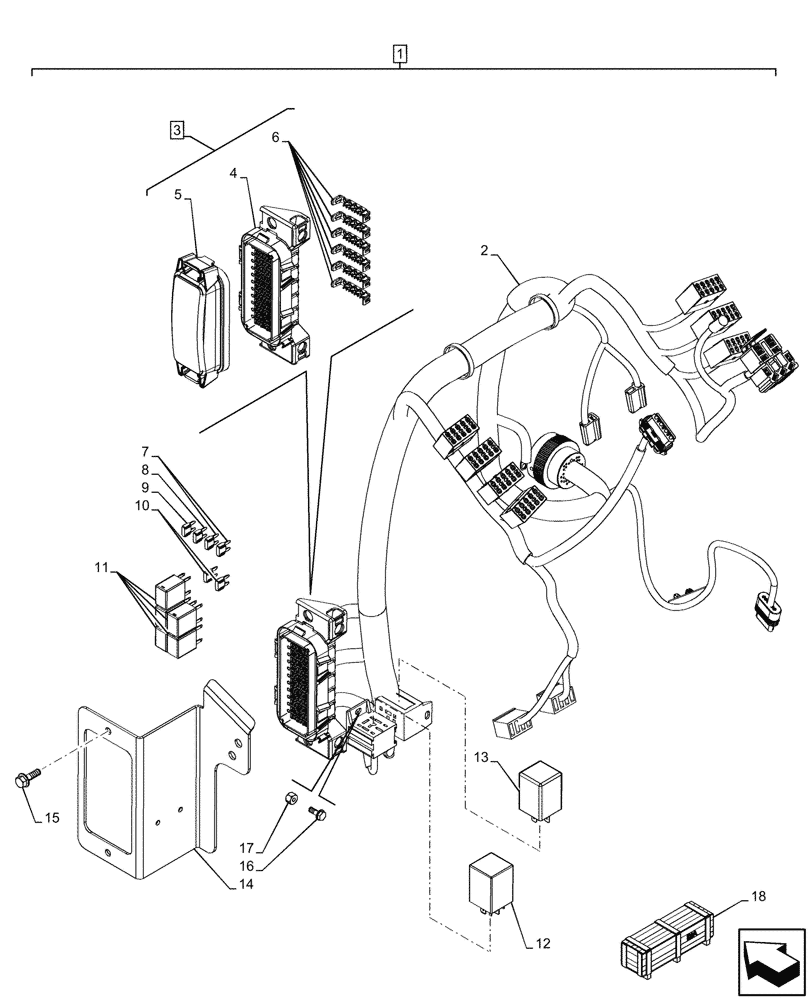

Запчасти Case 580SN WT (55.100.050) - VAR - 423058, 423059 - POWERSHUTTLE, TRANSMISSION, FRONT, CONSOLE, HARNESS, FUSE BOX (55) - ELECTRICAL SYSTEMS

1

84342267

WIRE HARNESS

ASSY, Powershuttle Transmission, Front Console, Incl 2 - 17

1шт.

See also Wire Harness Components in Figures 55.405.070, 90.108.100

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

84380518

FUSE BOX

ASSY, Incl 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Box, Incl in 3

1шт.

5

84404932

COVER

1шт.

6

84342278

CONNECTING BLOCK

6шт.

7

121413A1

FUSE,15A, Mini, Blue

2шт.

8

121411A1

FUSE,7.5A, Mini, Brown

1шт.

9

121412A1

FUSE,10A, Mini, Red

1шт.

10

121410A1

FUSE,5A, Mini, Tan

2шт.

11

87655334

RELAY,12V, 35A, Micro

4шт.

12

87578455

RELAY,12V, Turn Signal and Hazard

1шт.

13

347706A3

RELAY,12V, 5A

Sealed Time Delay

1шт.

14

84238043

BRACKET

Front Harness

1шт.

15

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

16

87301687

SCREW,HWH, #10 - 32 x 1/2"

2шт.

17

231-24409

NUT,#10-32

2шт.

18

84342278

CONNECTING BLOCK

Harness, Connecting Block, Incl 6

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 590SN (Livery) NRC Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
