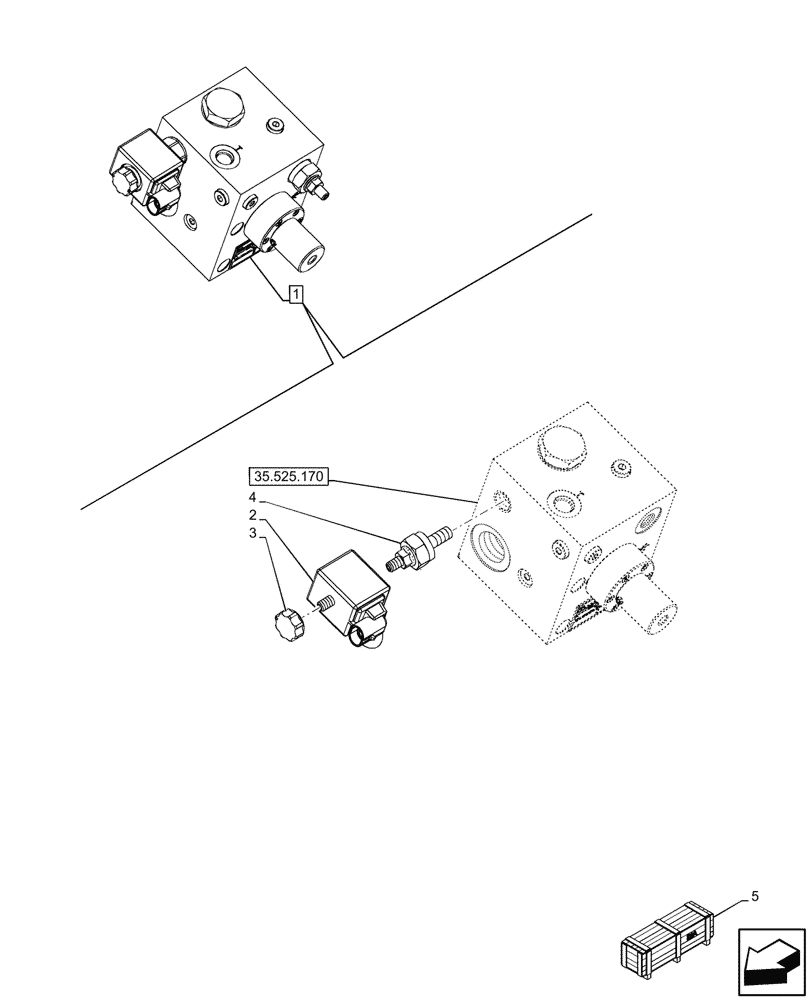

Запчасти Case 580SN WT (55.036.040) - VAR - 423084 - AUXILIARY CONTROL VALVE, SOLENOID (55) - ELECTRICAL SYSTEMS

1

84247110

VALVE

ASSY, Closed Center, UNI-AUX, Incl 2 - 4

1шт.

See also Valve Components in Figure 35.525.170

1шт.

2

84478803

COIL

Solenoid with Connector Diode

1шт.

3

9970384

RING NUT

1шт.

4

47491458

SOLENOID VALVE

1шт.

5

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Extendable Dipper, Pilot Control, Incl 1 - 4

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 4

1шт.

Valid for 580SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 4

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
