Запчасти Case 580SN WT (55.024.110) - VAR - 423062 - TRANSMISSION, POWERSHIFT, CONTROL VALVE, COMPONENTS, 4WD (55) - ELECTRICAL SYSTEMS

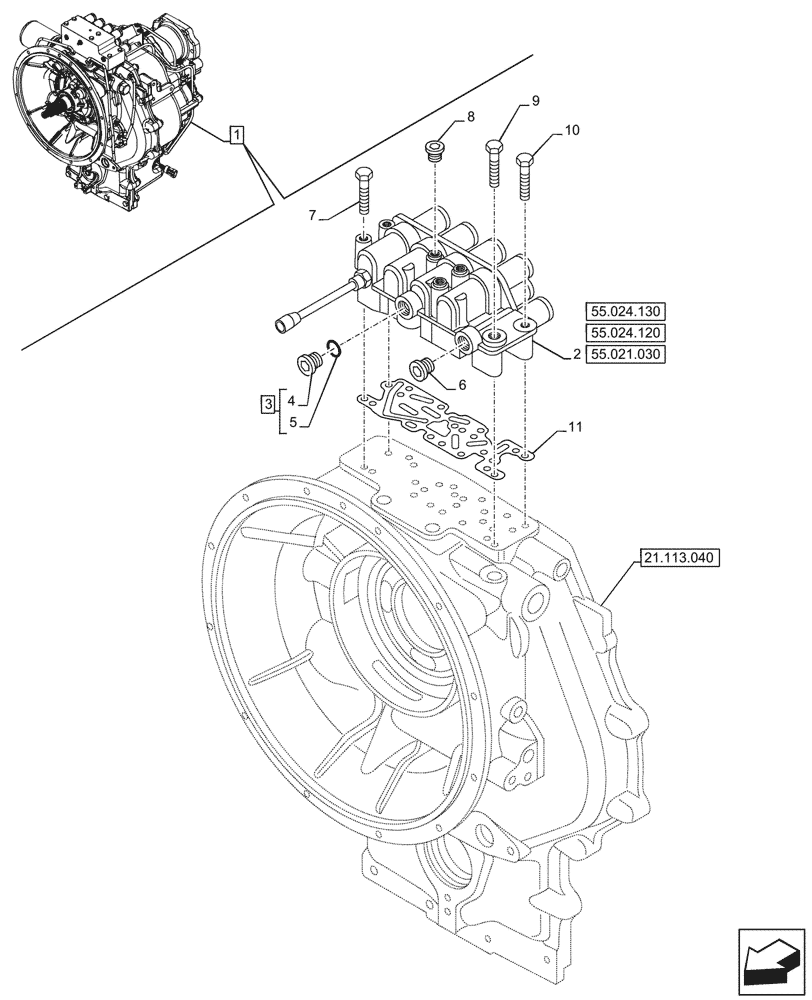

Схема запчастей Case 580SN WT - (55.024.110) - VAR - 423062 - TRANSMISSION, POWERSHIFT, CONTROL VALVE, COMPONENTS, 4WD (55) - ELECTRICAL SYSTEMS
55.024.130
1
4
8
10
11
7
6
3
5
2
9
55.024.120
55.021.030
21.113.040

Артикул

Название

Примечание

Количество

1

87567534

TRANSMISSION

ASSY, TLB 2, Powershift, Incl 2 - 11

1шт.

See also Transmission Components in Figures 21.105.020, 21.105.030, 21.113.030, 21.113.040, 21.155.010, 21.155.020, 21.155.030, 21.155.040, 21.155.050, 21.155.060, 33.110.050, 55.020.030, 55.022.060, 55.024.070, 55.031.090, 55.031.100

1шт.

2

87705566

CONTROL VALVE

ASSY, Powershift Transmission

1шт.

3

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

1шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

87705729

PLUG

1шт.

7

87707942

BOLT,Hex, M8 x 95mm, Cl. 8.8

1шт.

8

87705714

PLUG

1шт.

9

87705723

BOLT,Hex, M8 x 65mm, Cl. 8.8

1шт.

10

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

11

87705720

GASKET

1шт.

Выбрано товаров: 12
