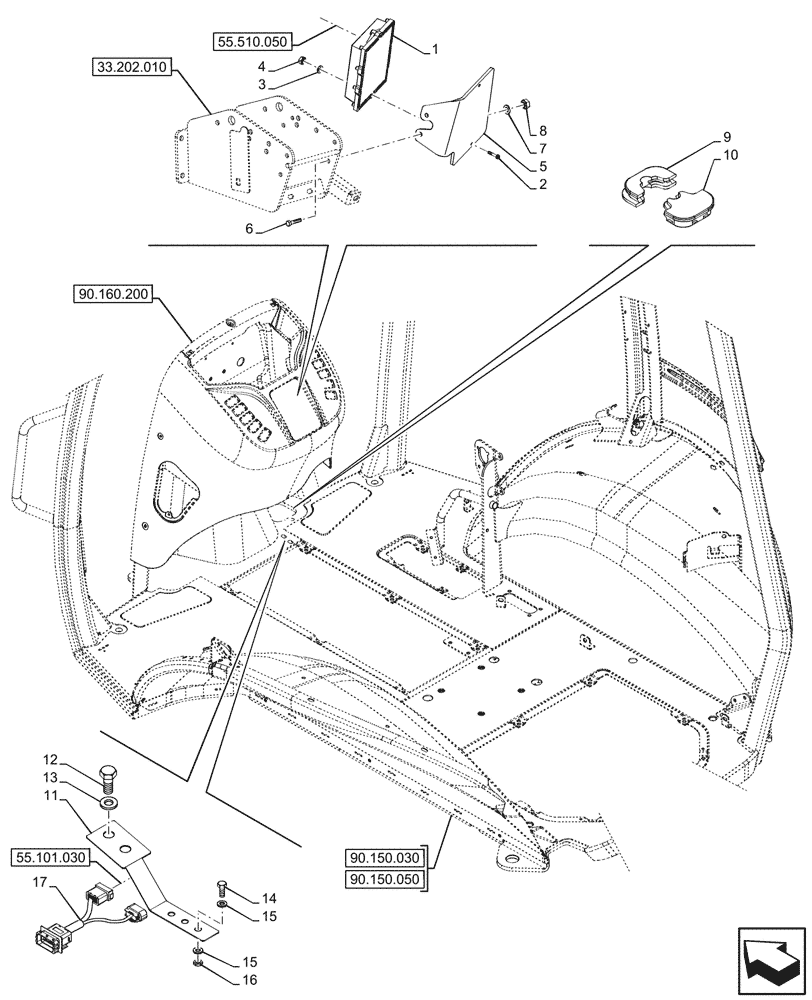

Запчасти Case 580SN WT (55.024.090) - VAR - 423062 - POWERSHIFT, TRANSMISSION, ELECTRONIC CONTROLS, MODULE, 4WD (55) - ELECTRICAL SYSTEMS

1

84278195

ECU

Powershift Controller

1шт.

2

864-5040

HEX SOC SCREW,M5 x 40mm, Cl 8.8

2шт.

3

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

4

824-1405

NUT,M5, Cl 5

2шт.

5

87644491

BRACKET

Powershift Controller

1шт.

6

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

9

397443A2

SEAL,110mm L

Powershift Cable

1шт.

10

397493A2

SEAL,106mm L

Powershift Cable

1шт.

11

87712564

BRACKET

Powershift Transmission

1шт.

12

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

15

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

17

84292225

HARNESS

Powershift Jumper

1шт.
