(41.216.070) - FRONT AXLE, STEERING CYLINDER, 4WD

Запчасти Case 580SN WT (41.216.070) - FRONT AXLE, STEERING CYLINDER, 4WD (41) - STEERING

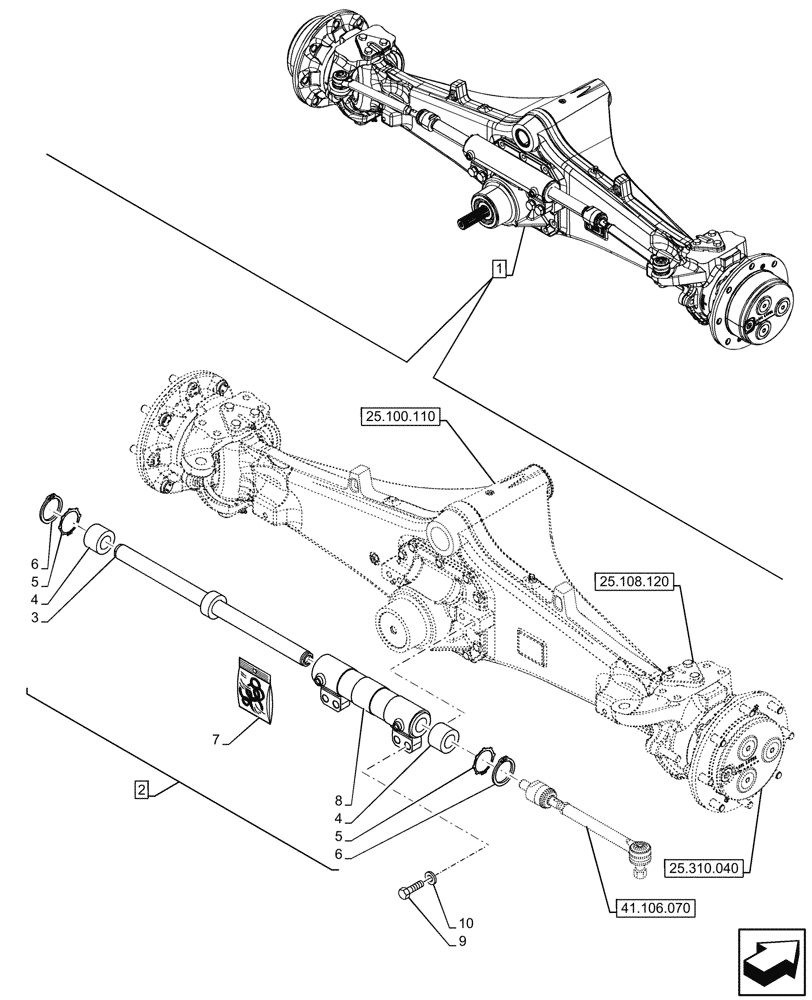

Схема запчастей Case 580SN WT - (41.216.070) - FRONT AXLE, STEERING CYLINDER, 4WD (41) - STEERING
25.100.110
4
2
6
5
4
1
3
8
7
5
10
9
6
41.106.070
25.310.040
25.108.120
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47559841

FRONT AXLE

ASSY, Grey, PS1428 ACP, LS, 13.7-1, Incl 2 - 10

1шт.

See also Front Axle Components in Figures 25.100.110, 25.100.120, 25.102.070, 25.102.080, 25.108.120, 25.108.130, 25.108.140, 25.310.040, 41.106.070

1шт.

2

84264406

STEERING CYLINDER,Double Acting, 40mm Rod, 70mm Bore, 249mm Stroke

ASSY, Incl 3 - 8

1шт.

3

84276953

ROD

Piston Steering Cylinder

1шт.

4

84276994

CYLINDER END CAP

Steering

2шт.

5

84276996

SNAP RING,70mm OD x 2mm Thk

2шт.

6

84276995

CIRCLIP,70mm Special

External

2шт.

7

84331720

SEAL KIT

Steering Cylinder, 4WD

1шт.

8

NSS

NOT SOLD SEPARAT

Protective Sleeve, Incl in 2

1шт.

9

11244634

BOLT,Hex, M18 x 1.5 x 60, 10.9

4шт.

10

84349418

WASHER,19mm ID x 34mm OD x 3mm Thk

4шт.
