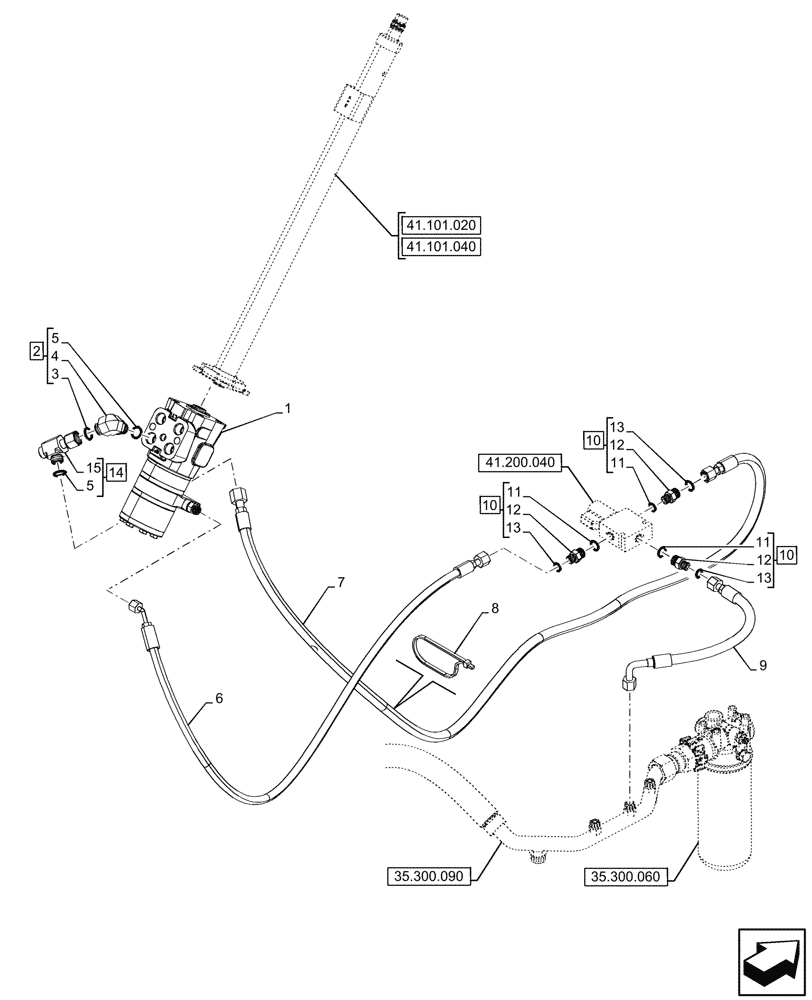

Запчасти Case 580SN WT (41.206.090) - VAR - 423011 - POWER STEERING PUMP, LINE (41) - STEERING

1

87665116

STEERING VALVE

ASSY, Steering Column

1шт.

2

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

ASSY, Incl 3, 4, 5 (Qty 1)

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

84251296

HOSE ASSY.,6.3mm ID x 1250mm L

From Comfort Steer Solenoid to Pump Steering

1шт.

7

84252231

HOSE ASSY.,10mm ID x 1866mm L

Comfort Steer Solenoid to Pump Steering

1шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

9

84514720

HOSE ASSY.,10mm ID x 422mm L

From Comfort Steer Solenoid to Pump Oil Line

1шт.

10

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

ASSY, Incl 11 - 13

3шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

3шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

14

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 5 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

Tee, Incl in 14

1шт.
