Запчасти Case 580SN WT (41.200.010) - STEERING, OIL LINE (41) - STEERING

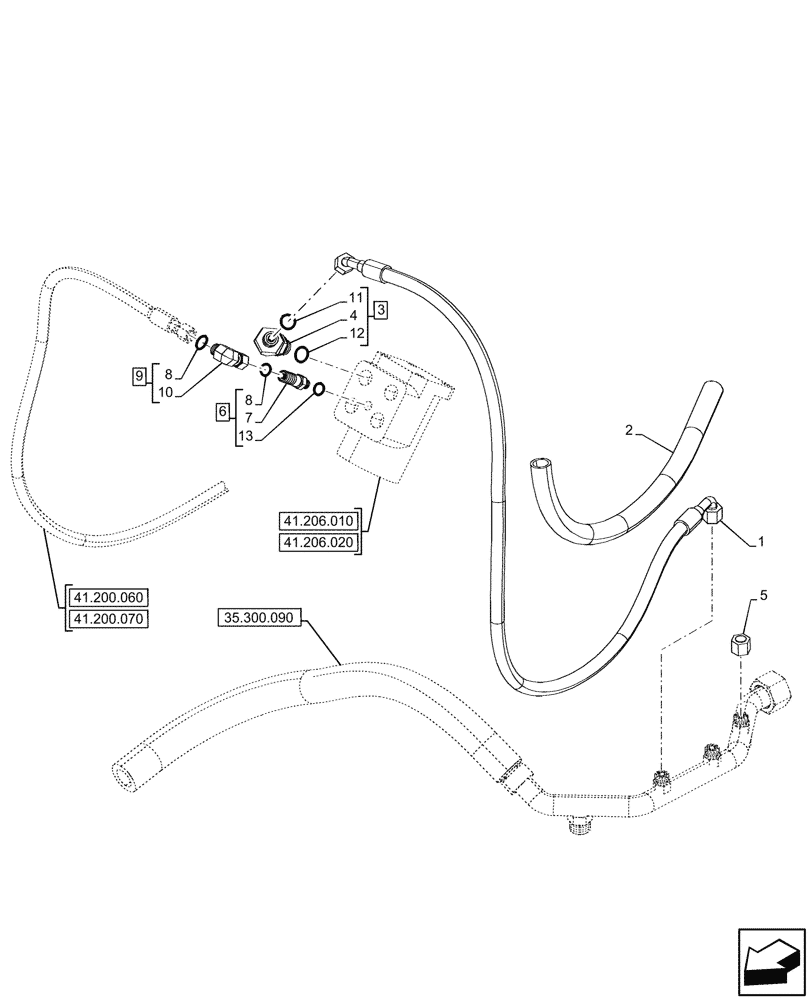

Схема запчастей Case 580SN WT - (41.200.010) - STEERING, OIL LINE (41) - STEERING
41.206.020
13
9
5
3
12
6
8
1
10
2
11
4
8
7
41.200.060
41.206.010
35.300.090
41.200.070

Артикул

Название

Примечание

Количество

1

84279129

HOSE,25mm ID x 1280mm L

Steering Return, Steering Pump to Oil Filter Line

1шт.

2

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

1шт.

3

201-344

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ASSY, Incl 4, 11, 12

1шт.

4

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 3

1шт.

5

87331950

CAP ASSY.,Hex, 11/16"-16

1шт.

6

87530057

FITTING

ASSY, Incl 7, 8, 13

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

ASSY, Incl 8, 10

1шт.

10

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Выбрано товаров: 13
