Запчасти Case 580SN WT (41.106.070) - FRONT AXLE, STEERING TIE-ROD, 4WD (41) - STEERING

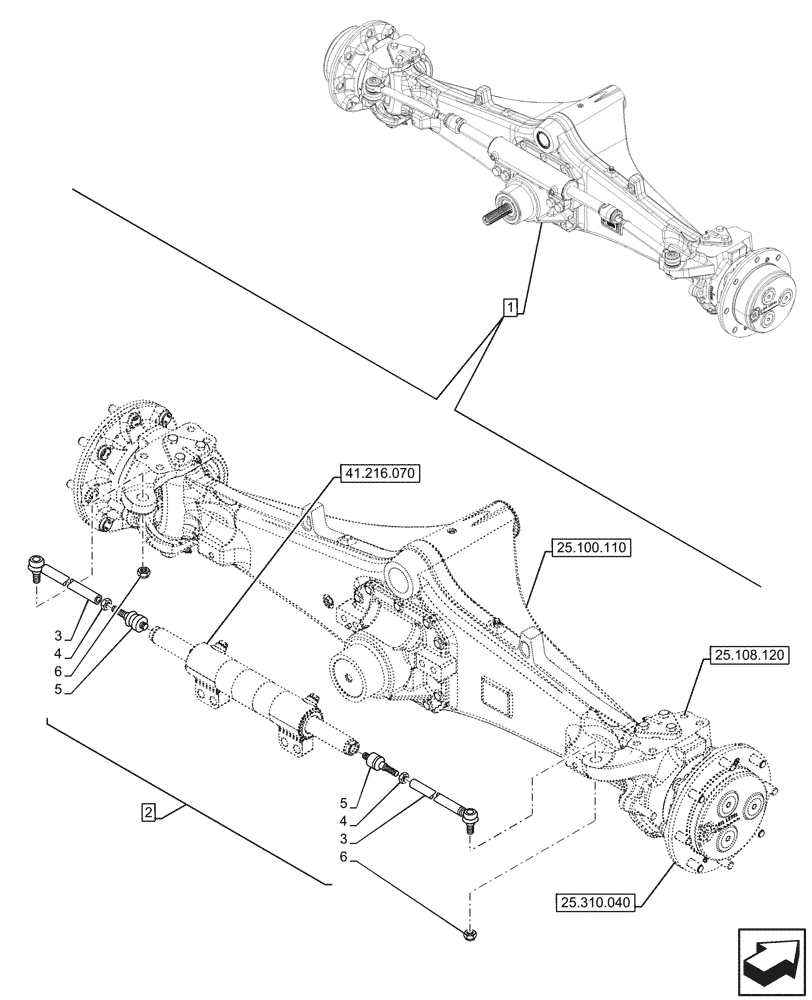

Схема запчастей Case 580SN WT - (41.106.070) - FRONT AXLE, STEERING TIE-ROD, 4WD (41) - STEERING
41.216.070
3
2
4
6
6
4
3
1
5
5
25.310.040
25.108.120
25.100.110

Артикул

Название

Примечание

Количество

1

47559841

FRONT AXLE

ASSY, Grey, PS1428 ACP, LS, 13.7-1, Incl 2 - 6

1шт.

See also Front Axle Components in Figures 25.100.110, 25.100.120, 25.102.070, 25.102.080, 25.108.120, 25.108.130, 25.108.140, 25.310.040, 41.216.070

1шт.

2

84264410

TIE-ROD,397mm L

ASSY, Incl 3 - 6

2шт.

3

84276565

BALL JOINT,36mm OD x 282mm L

Tie Rod

2шт.

4

87489982

NUT,M24 x 1.5, Cl. 8

2шт.

5

87489984

BALL JOINT,444.1mm L

Tie Rod

2шт.

6

87489983

NUT,M24 x 1.5, Cl. 10

2шт.

Выбрано товаров: 7
