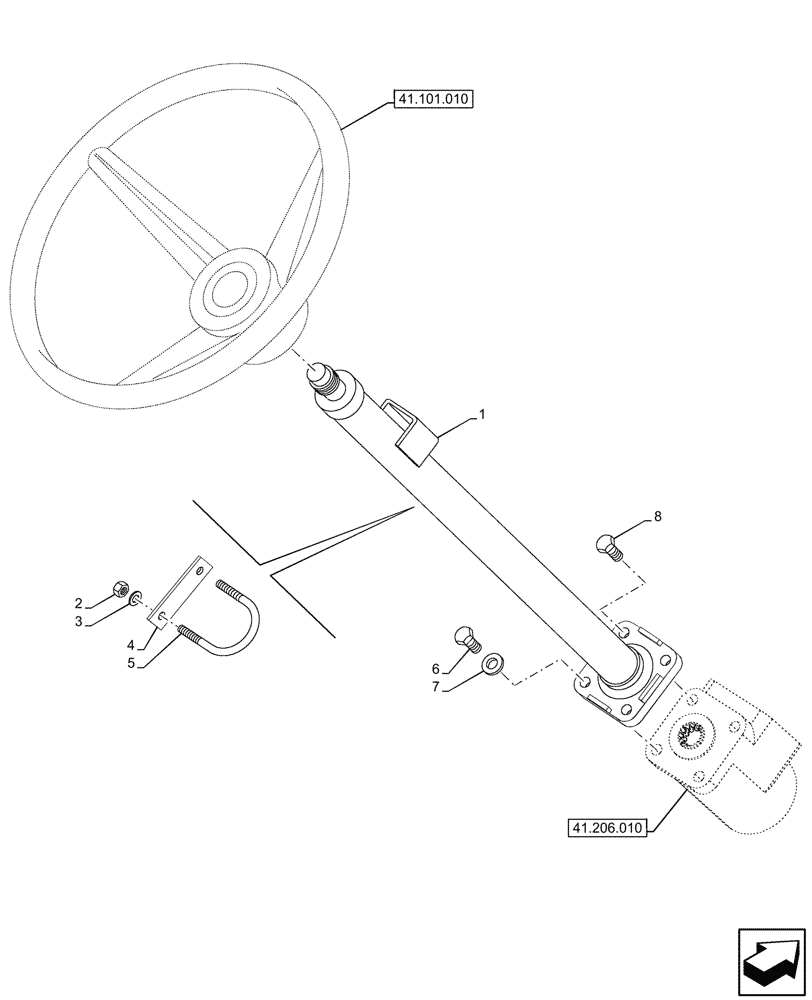

Запчасти Case 580SN WT (41.101.040) - VAR - 423000, 423001, 442080 - CANOPY, STEERING COLUMN (41) - STEERING

1

47853617

STEERING COLUMN

Fixed

1шт.

2

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

4

352727A1

SPACER

1шт.

5

379846A1

U-BOLT,M8 x 1.25, Round, 58.7mm W, 78mm L

1шт.

6

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

8

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.
