(35.738.040) - HYDRAULIC LIFT, W/ MECHANICAL LIFT, VALVE, COMPONENTS

Запчасти Case 580SN WT (35.738.040) - HYDRAULIC LIFT, W/ MECHANICAL LIFT, VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

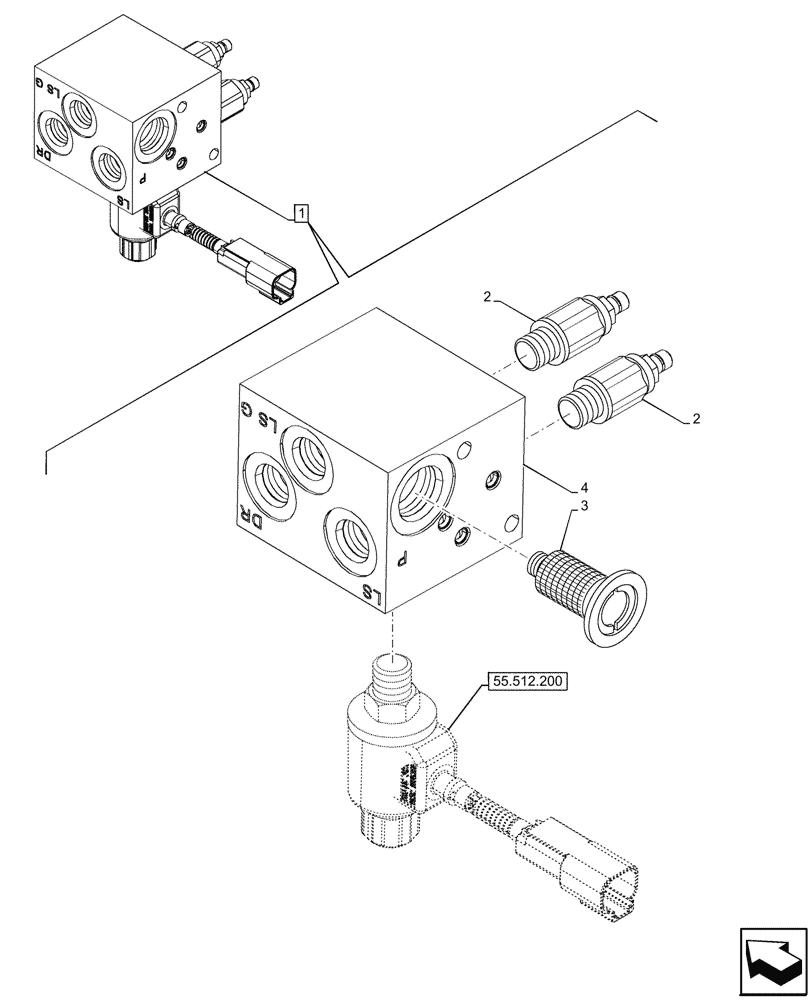

Схема запчастей Case 580SN WT - (35.738.040) - HYDRAULIC LIFT, W/ MECHANICAL LIFT, VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
55.512.200
2
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527714

CONTROL VALVE

ASSY, Heavy Lift, Incl 2 - 4

1шт.

See also Control Valve Components in Figure 55.512.190

1шт.

2

84338932

VALVE

Heavy Lift Relief

2шт.

3

84338934

FILTER STRAINER

W/ Orifice

1шт.

4

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.
