(35.106.180) - VAR - 747864 - LOADER, HYDRAULIC PUMP, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, LINE

Запчасти Case 580SN WT (35.106.180) - VAR - 747864 - LOADER, HYDRAULIC PUMP, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, LINE (35) - HYDRAULIC SYSTEMS

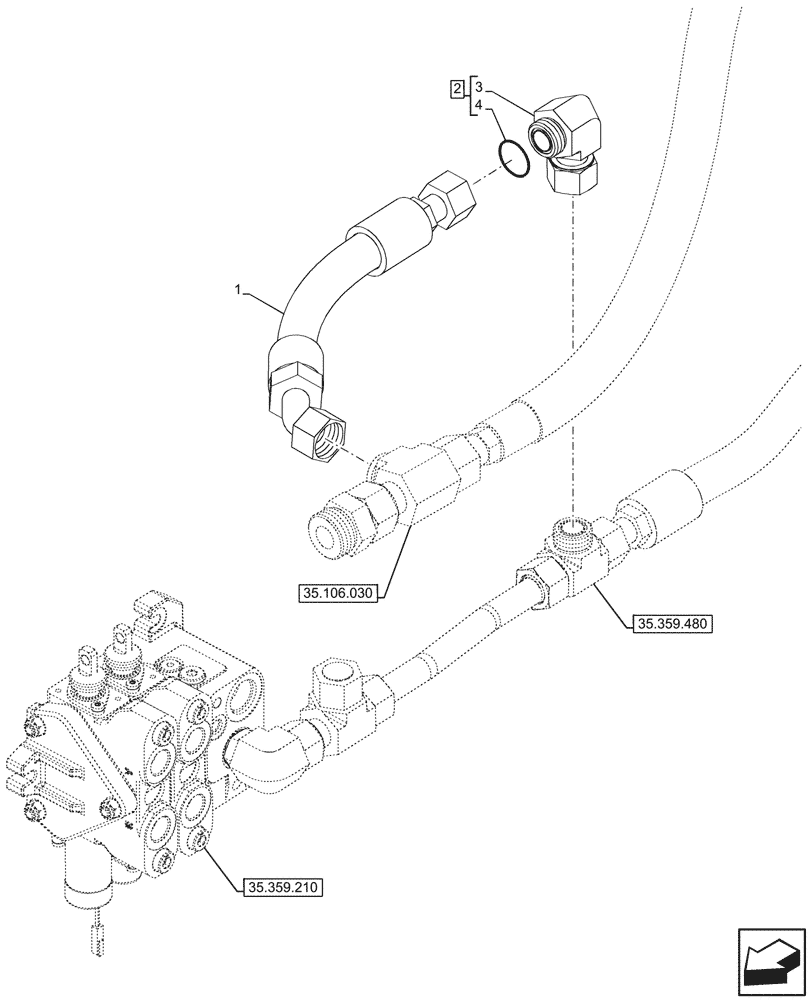

Схема запчастей Case 580SN WT - (35.106.180) - VAR - 747864 - LOADER, HYDRAULIC PUMP, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, LINE (35) - HYDRAULIC SYSTEMS
35.359.480
3
1
4
2
35.359.210
35.106.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47955919

HYDRAULIC HOSE,25mm ID, 450mm L, SAE100R12

Pressure, Hydraulic Pump Line to Backhoe Valve Line

1шт.

2

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

ASSY, Incl 3, 4

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

Выбрано товаров: 4
