Запчасти Case 580SN WT (33.202.040) - BRAKE, HYDRAULIC SYSTEM (33) - BRAKES & CONTROLS

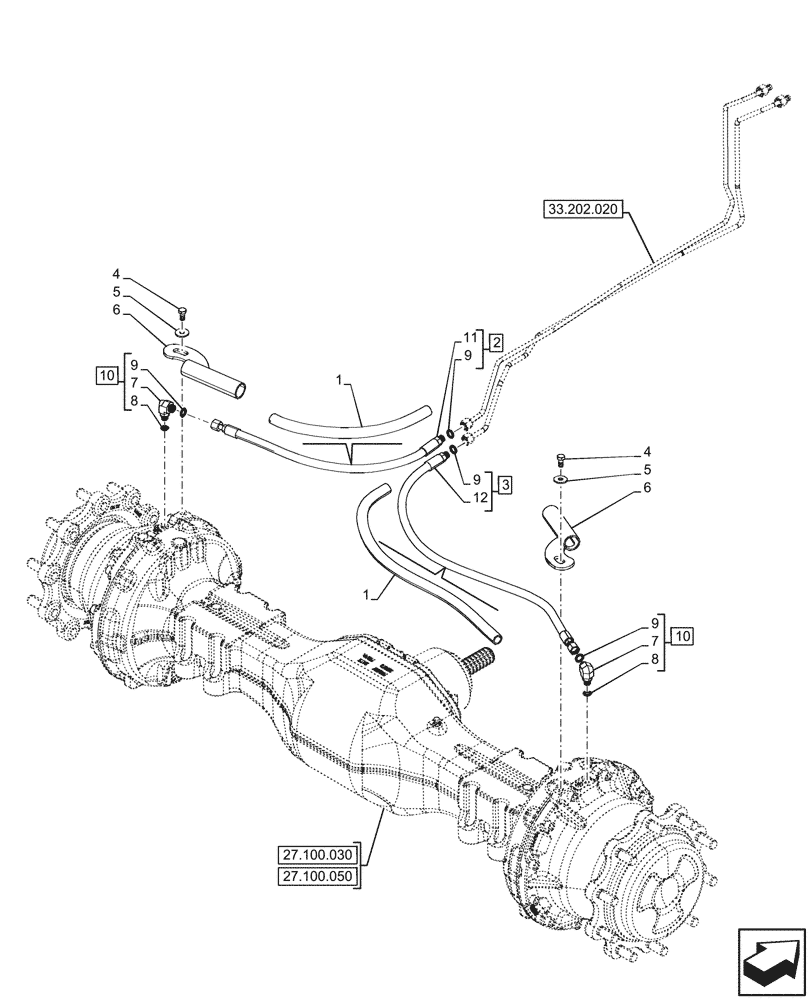

Схема запчастей Case 580SN WT - (33.202.040) - BRAKE, HYDRAULIC SYSTEM (33) - BRAKES & CONTROLS
27.100.050
9
9
8
5
7
2
4
5
11
3
6
8
1
10
9
4
10
6
9
1
12
7
27.100.030
33.202.020

Артикул

Название

Примечание

Количество

1

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

2шт.

2

84258169

HOSE ASSY.,10mm ID x 715mm L

Brake Line LH, Incl 9 (Qty 1), 11

1шт.

3

84258167

HOSE ASSY.,10mm ID x 915mm L

Brake Line RH, Incl 9 (Qty 1), 12

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

5

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

6

47959685

GUARD

Grey

2шт.

7

NSS

NOT SOLD SEPARAT

90 ELBOW, Incl in 10

2шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

10

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 7, 8, 9 (Qty 2)

2шт.

11

NSS

NOT SOLD SEPARAT

Hose, Incl in 2

1шт.

12

NSS

NOT SOLD SEPARAT

Hose, Incl in 3

1шт.

Выбрано товаров: 12
