Запчасти Case 580SN WT (33.110.050) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, PARKING BRAKE, DISC, 4WD (33) - BRAKES & CONTROLS

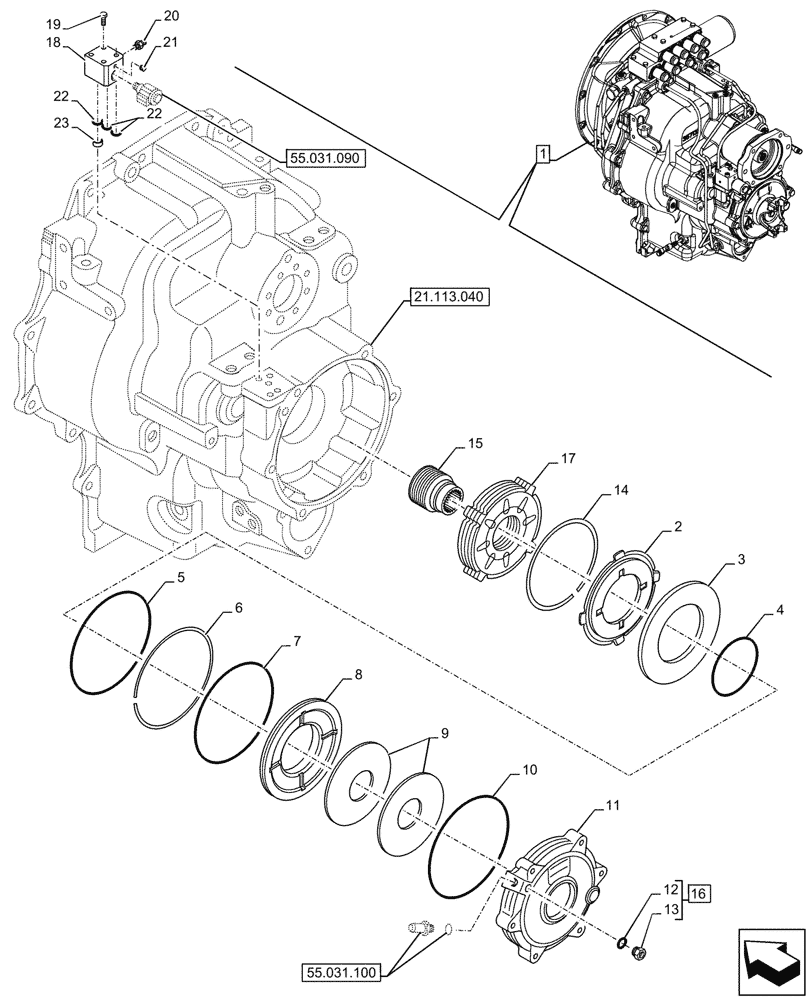

Схема запчастей Case 580SN WT - (33.110.050) - VAR - 423062 - TRANSMISSION, POWERSHIFT, COMPONENTS, PARKING BRAKE, DISC, 4WD (33) - BRAKES & CONTROLS
55.031.090
23
15
19
22
14
12
7
18
6
5
22
21
8
10
1
3
4
17
16
20
9
11
2
13
55.031.100
21.113.040

Артикул

Название

Примечание

Количество

1

87567534

TRANSMISSION

ASSY, TLB 2, Powershift, Incl 2 - 23

1шт.

See also Transmission Components in Figures 21.105.020, 21.105.030, 21.113.030, 21.113.040, 21.155.010, 21.155.020, 21.155.030, 21.155.040, 21.155.050, 21.155.060, 55.020.030, 55.022.060, 55.024.070, 55.024.110, 55.031.090, 55.031.100

1шт.

2

87701324

BRAKE PLATE

Powershift Transmission

1шт.

3

87701323

RETAINING PLATE

1шт.

4

87701321

SEALING RING

1шт.

5

87701320

O-RING

1шт.

6

87701315

RING

1шт.

7

87701318

SEALING RING

1шт.

8

87701317

PISTON

1шт.

9

363485A1

BELLEVILLE WASHER,61mm ID x 170mm OD x 4.6mm Thk

2шт.

10

87701310

O-RING,0.103" Thk x 8.237" ID, -172, Cl 5, 75 Duro

1шт.

11

87701309

COVER

Transmission Brake

1шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 16

1шт.

14

87701325

SPACER

5шт.

15

87701328

BUSHING

1шт.

16

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 12, 13

1шт.

17

87701327

BRAKE PACKAGE

Powershift Transmission

1шт.

18

87701330

CONTROL BLOCK

1шт.

19

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

20

139312A1

PLUG,Expansion, 6mm OD

2шт.

21

933781R1

LUBE NIPPLE,M10 x 1

1шт.

22

277217

SEAL KIT

Powershift Transmission, Contol Valve

4шт.

23

87701333

ORIFICE

1шт.

Выбрано товаров: 24
