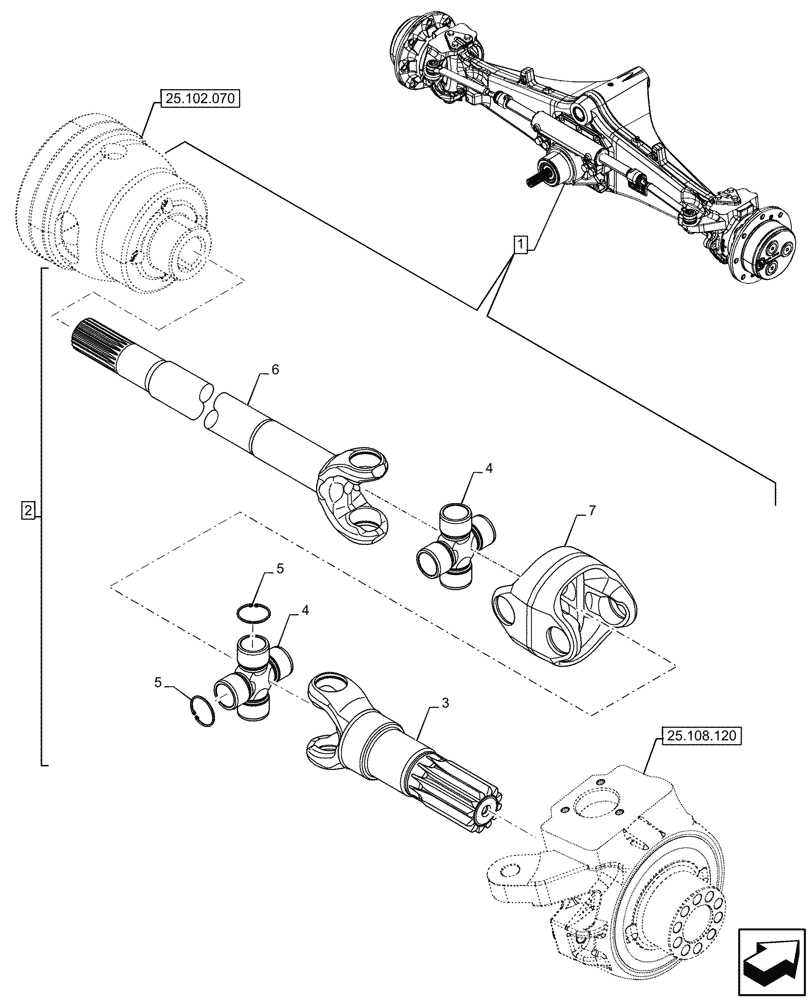

Запчасти Case 580SN WT (25.108.140) - FRONT AXLE, SHAFT, 4WD (25) - FRONT AXLE SYSTEM

1

47559841

FRONT AXLE

ASSY, Grey, PS1428 ACP, LS, 13.7-1, Incl 2 - 7

1шт.

See also Front Axle Components in Figures 25.100.110, 25.100.120, 25.102.070, 25.102.080, 25.108.120, 25.108.130, 25.310.040, 41.106.070, 41.216.070

1шт.

2

84316954

AXLE-SHAFT, ARTICULA,1023.5mm L

ASSY, Incl 3 - 7

1шт.

3

84316955

HALF SHAFT,225mm L, 12T

Front Axle

1шт.

4

84258439

U-JOINT SPIDER

Journal and Bearing

2шт.

5

301644

CIRCLIP,M30, Int

Circlip

8шт.

6

84258436

HALF SHAFT,726mm L, 22T

Front Axle

1шт.

7

84258437

YOKE

Front Axle

1шт.
