Запчасти Case 580SN WT (25.108.130) - FRONT AXLE, STEERING KNUCKLE, HUB, 4WD (25) - FRONT AXLE SYSTEM

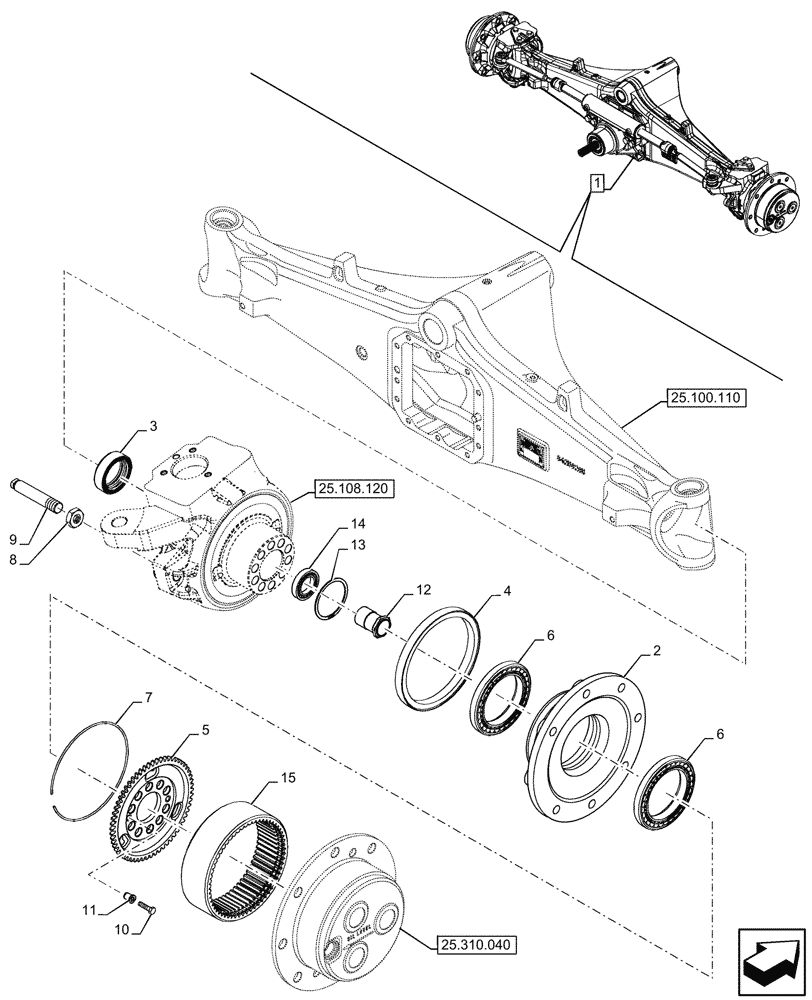

Схема запчастей Case 580SN WT - (25.108.130) - FRONT AXLE, STEERING KNUCKLE, HUB, 4WD (25) - FRONT AXLE SYSTEM
25.108.120
1
11
7
10
5
12
13
14
8
6
15
4
6
3
9
2
25.100.110
25.310.040

Артикул

Название

Примечание

Количество

1

47559841

FRONT AXLE

ASSY, Grey, PS1428 ACP, LS, 13.7-1, Incl 2 - 15

1шт.

See also Front Axle Components in Figures 25.100.110, 25.100.120, 25.102.070, 25.102.080, 25.108.120, 25.108.140, 25.310.040, 41.106.070, 41.216.070

1шт.

2

47570583

HUB

Drive

1шт.

3

84264324

SEAL,53.2mm ID x 78mm OD x 14mm Thk

Oil Cartridge

1шт.

4

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

1шт.

5

84259703

GEAR,60T

Support

1шт.

6

84545376

TAPERED BEARING,109.54mm ID x 158.7mm OD x 23.020mm L

2шт.

7

5165162

SNAP RING,M50, Int

1шт.

8

47361877

NUT,Hex, Thin, M18 x 2.5, Cl. 5

1шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

Limitation Steering

1шт.

10

87015539

BOLT,Hex, M12 x 45mm, Cl 10.9

8шт.

11

84252637

SLEEVE,12.55mm ID x 20.080mm OD x 25mm Thk

T-Dowel

8шт.

12

84316956

NUT,M45 x 1.5, 88.5mm L

Stake

1шт.

13

84270868

CIRCLIP,75 PHC

Internal HVY

1шт.

14

84262394

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.

15

87748929

RING GEAR,60T

1шт.

Выбрано товаров: 16
