(23.314.070) - REAR AXLE, DRIVE SHAFT, COMPONENTS

Запчасти Case 580SN WT (23.314.070) - REAR AXLE, DRIVE SHAFT, COMPONENTS (23) - FOUR WHEEL DRIVE SYSTEM

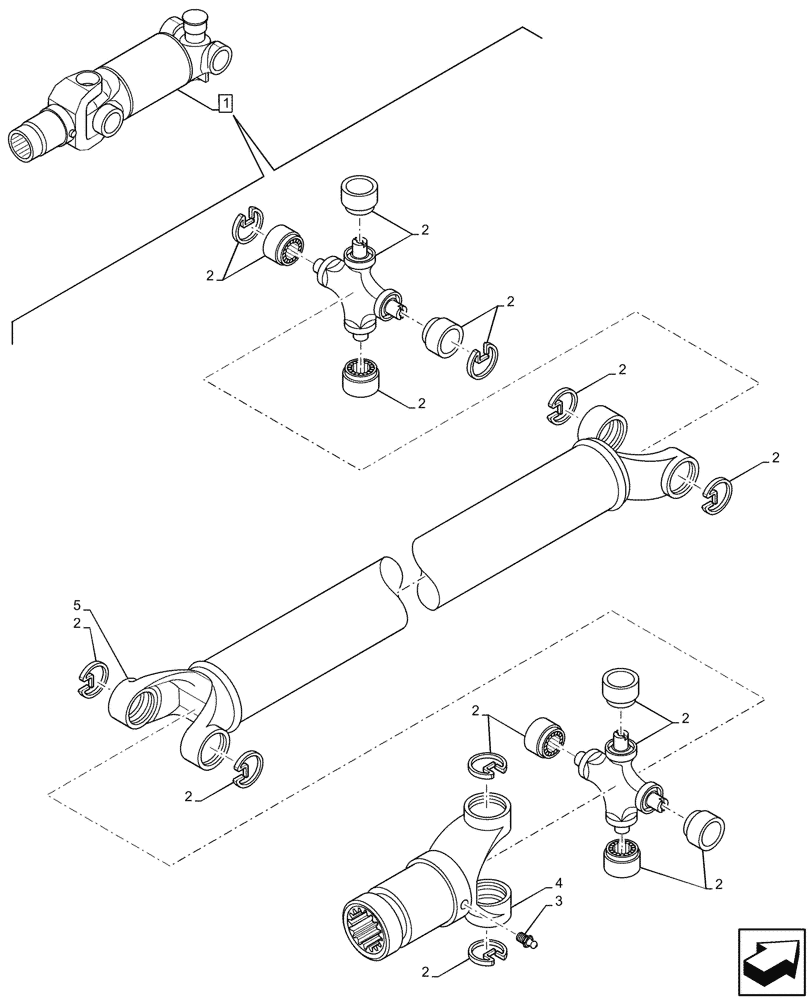

Схема запчастей Case 580SN WT - (23.314.070) - REAR AXLE, DRIVE SHAFT, COMPONENTS (23) - FOUR WHEEL DRIVE SYSTEM
4
2
2
2
2
2
2
2
3
2
2
2
2
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87693489

DRIVE SHAFT

ASSY, Rear, 40mm Spline, Incl 2 - 5

1шт.

2

393231A1

SPIDER

Kit Universal Joint

2шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

87716825

YOKE,40mm

1шт.

5

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.
