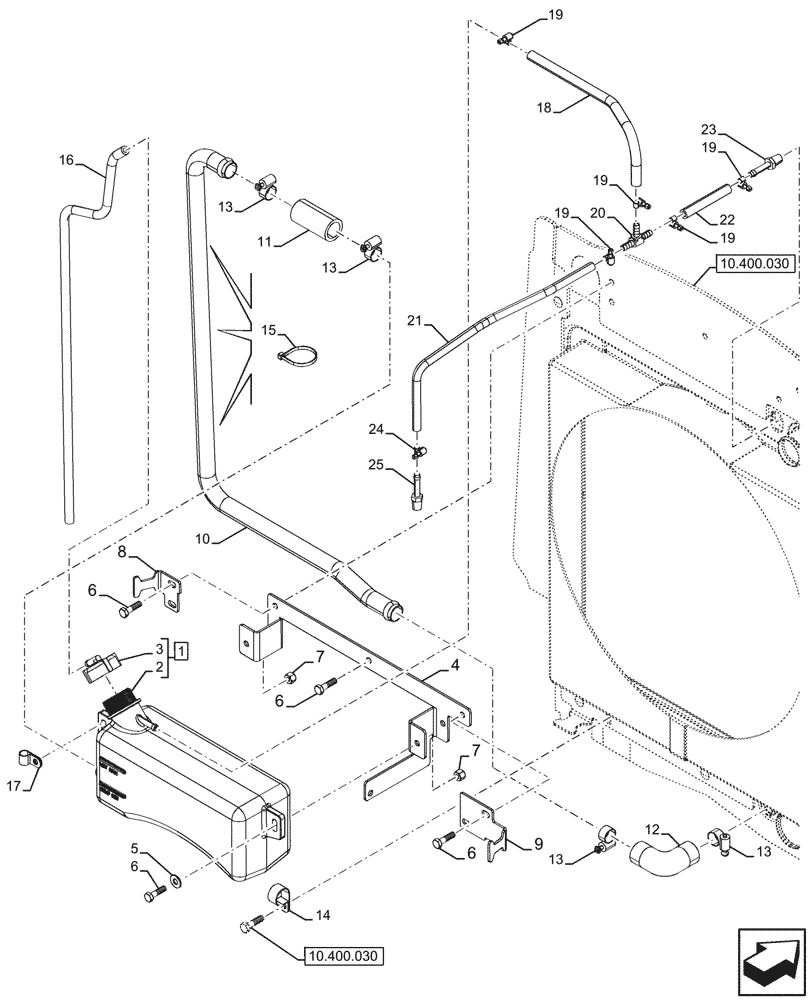

Запчасти Case 580SN WT (10.400.040) - VAR - 423000, 423001, 442082, 747854 - RADIATOR, EXPANSION TANK (10) - ENGINE

1

87674844

RESERVOIR, COOLANT E,3L

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Deaeration Bottle, Incl in 1

1шт.

3

85803019

RADIATOR CAP

1шт.

4

87632870

BRACKET

Bottle Retaining

1шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

7шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

8

87548813

BRACKET

LH, Support

1шт.

9

87548814

BRACKET

RH, Support

1шт.

10

87557237

TUBE,1" OD

Radiator Fill

1шт.

11

87367622

HOSE,25.40 mm ID x 60.00 mm, SAE 20R3 CLASS D-1 Or D-2

Tube to Recovery Bottle

1шт.

12

87454376

HOSE,25mm ID, 29.95mm OD, 90 Degree

Deaeration Elbow

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

14

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

16

87616934

HOSE,6.35mm ID x 750mm L, SAE 30R6

Radiator Bottle Overflow

1шт.

17

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

18

87715652

HOSE,7.90 mm ID, SAE J30, SAE 30R6 Or SAE 20R4 Class D1

Bottle to Tee

1шт.

19

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

20

87721028

TEE

1шт.

21

87721299

HOSE,8.30 mm ID x 390 mm, SAE 30R6 Or SAE 20R4 Class D1

Engine to Tee

1шт.

22

87721260

RADIATOR HOSE,7.90 mm ID x 90.00 mm, SAE 30R6 Or SAE 20R4 Class D1

Radiator to Tee

1шт.

23

87301325

FITTING,5/16" Hose X 1/4" NPTF Beaded

1шт.

24

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

25

87721314

ORIFICE,1.5mm ID

1шт.
