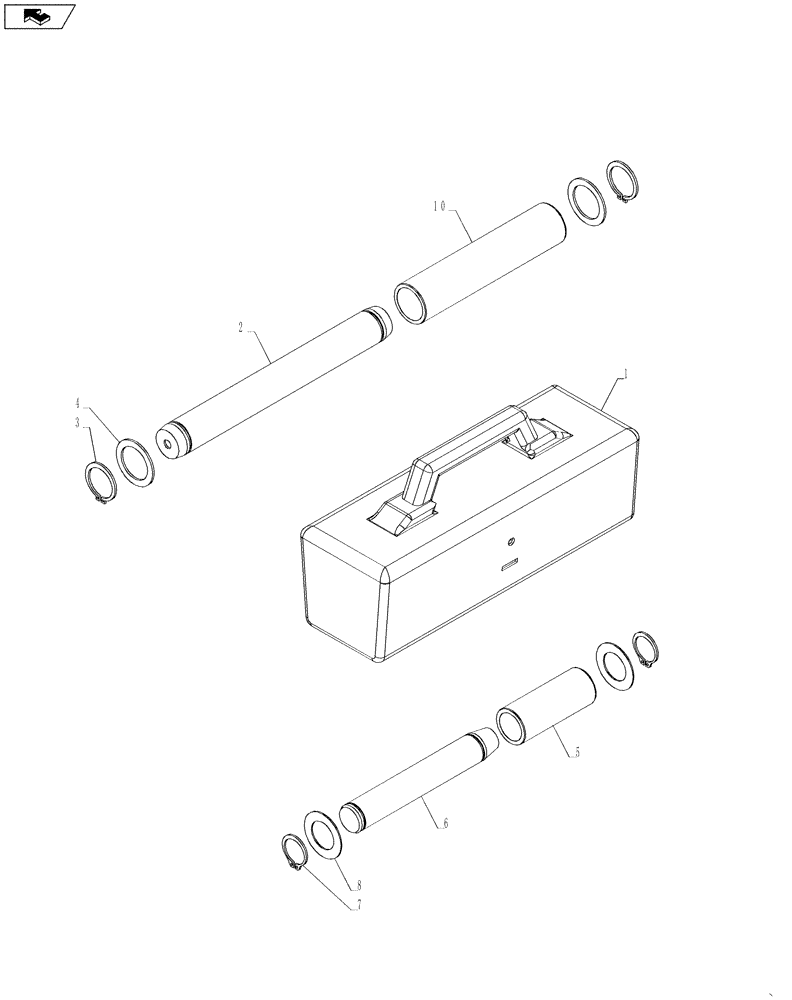

Запчасти Case 580SN (90.120.10) - VAR - 423082 - TOOL BOX - RETRO FIT KIT (MECHANICAL COUPLER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87590309

TOOL BOX

1шт.

2

84306037

PIN,44.29mm OD x 372.6mm L

1шт.

3

103-16175

SNAP RING,#175, Ext

2шт.

4

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

2шт.

5

84300835

SLEEVE,38.3mm ID x 50mm OD x 125mm L

1шт.

6

D37614

PIN,38mm Od x 246mm L

1шт.

7

D25279

SNAP RING,M35, Int

2шт.

8

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

2шт.

9

84305928

INSTRUCTION

Not Shown

1шт.

10

84305919

SLEEVE,44.5mm ID x 55mm OD x 246mm L

1шт.
