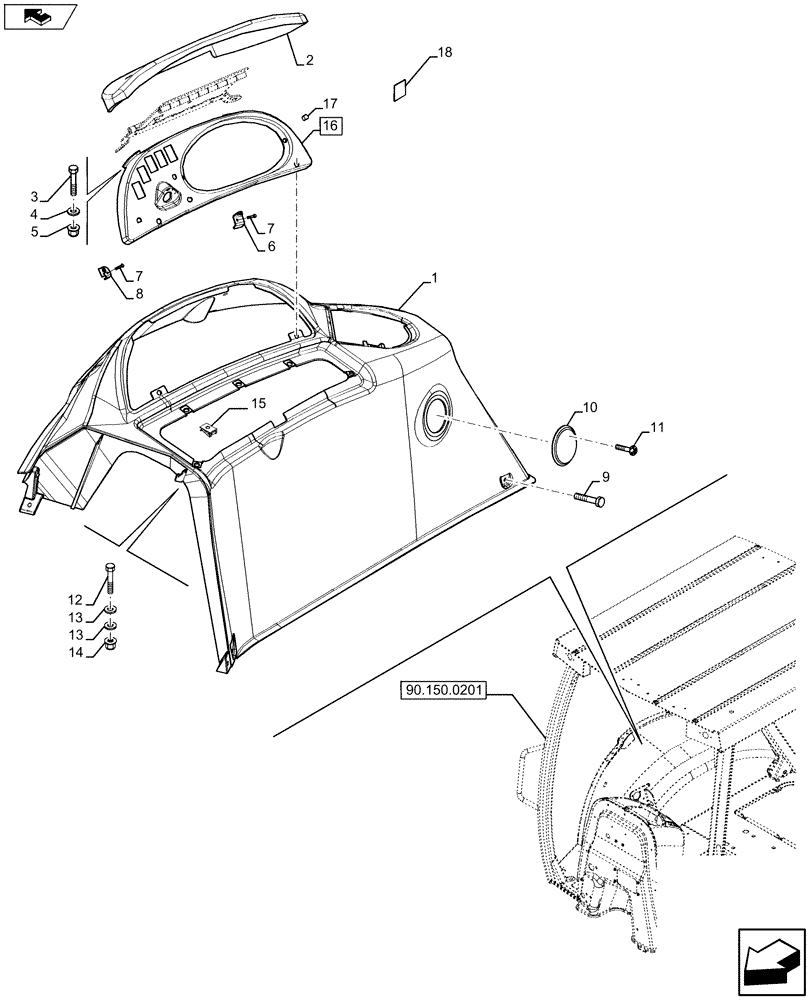

Запчасти Case 580SN (90.160.17) - VAR - 423000, 423001, 442082 - INSTRUMENT PANEL, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

360250A2

CONSOLE

1шт.

2

385614A4

CONSOLE

1шт.

3

87310176

BOLT,Round Head, M8 x 20, Cl 8.8

2шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

386369A2

BRACKET

1шт.

7

87310128

SCREW,Pan Cross Recess Phillips, #10 - 24 x 57.20mm, Stainless

2шт.

8

386368A2

BRACKET

1шт.

9

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

10

D93716

PLUG,73.mm ID x 88.9mm OD

1шт.

11

87310144

SELF-TAP SCREW,Pan Head, M6 x 12.7mm

2шт.

12

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

13

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

14

832-10406

NUT,M6 x 1, Cl 8

1шт.

15

84326221

NUT

2шт.

16

391818A2

BEZEL

Assy, Incl 17

1шт.

17

390258A1

INSERT

2шт.

18

412510A1

SEALING STRIP

Console to Bezel

1шт.
